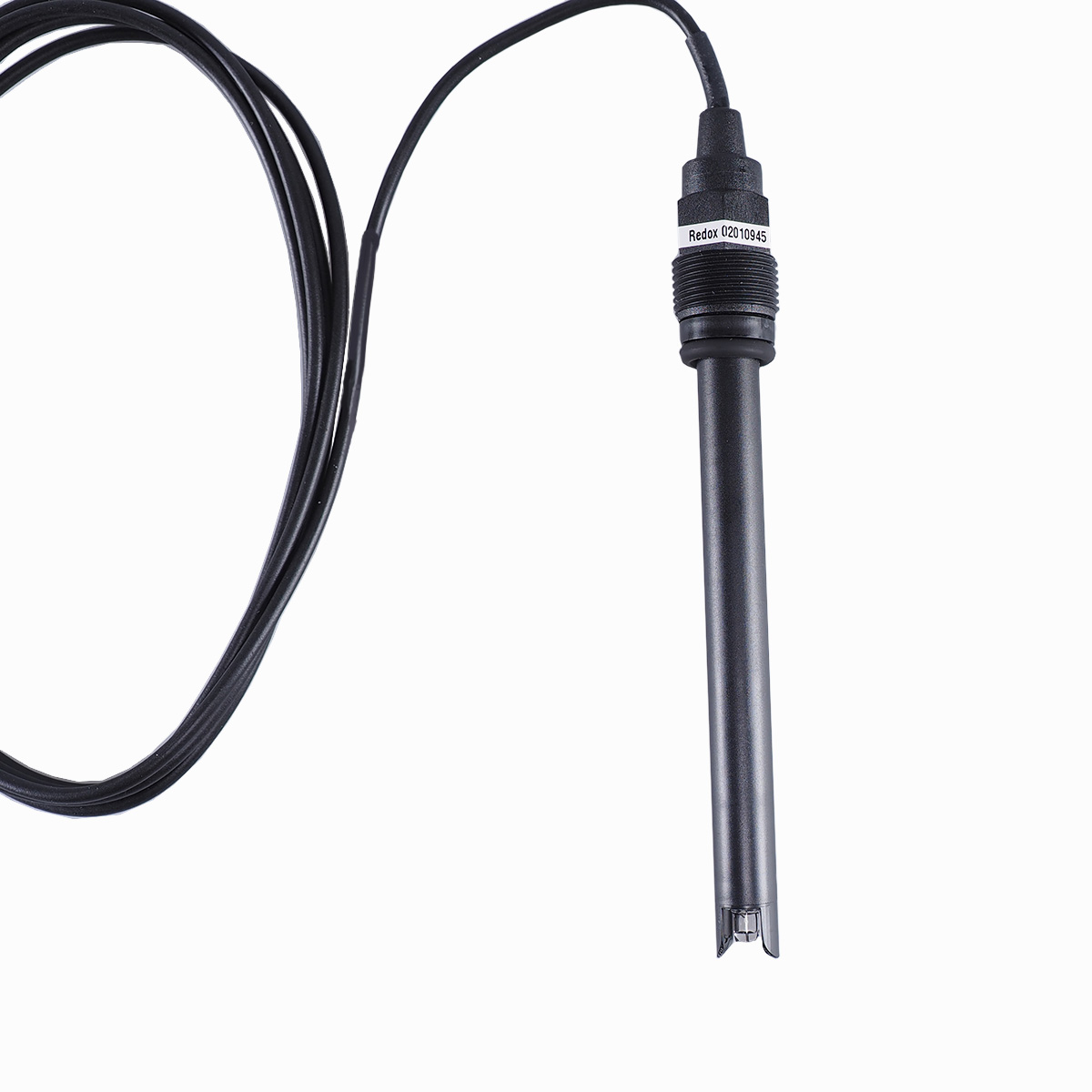

BlackLine pH/ORP electrodes with plastic shaft and fixed protection basket.Selected version: Without temperature sensor (not available for this series, only for Jumo tecLine and tecLine HD series)Screw head S8 Pg13.5 with fixed two meter cable and BNC connectorGlass fibre diaphragm Plastic shaft PEI Fitting length 120mm (standard) Type code (can also be found on your electrode): Type 201010/65-22-65-2000-76-120/837 ; part-no. 00424950 The electrodes of the JUMO BlackLine series are high-quality measuring sensors with a favorable price/performance ratio.Active part pH The JUMO BlackLine plastic electrodes with fixed protection basket are equipped with the low-resistance JUMO UW glass. This guarantees fast and reliable measurement results. Active part redox The robust platinum tip ensures reliable measurements and is also easy to clean. Reference system The Black Line plastic shaft version PEI uses a polymerised KCl solid electrolyte. This is ideally suited for measurements in aqueous media. For measurements in media with fewer ions or at high flow rates, the electrolyte can be equipped with an optional "salt reservoir" to increase the service life. A polymerized KCl solid electrolyte is also used with this electrode, and the JUMO cartridge discharge system, which has been tried and tested for years, is used as the reference system. Here, the electrolyte remains free of silver ions over the lifetime of the sensor and is therefore less susceptible to electrode poisons. The JUMO BlackLine has a high-quality ceramic diaphragm. The shaft is made of black PPO and has a permanently integrated protective basket. Optionally, the electrodes can be supplied in a storage container (quiver). This is recommended if the sensor is only used sporadically, for refreshing the sensor after longer, intensive use or for longer storage periods. All sensors can be supplied as OEM versions on request. Special versions on request. Areas of applicationDrinking water monitoring and treatmentSwimming poolAquaristics (also seawater aquaristics)Greenhouse technology Lightly polluted industrial, process and waste water Rainwater, pond water and surface water hand-held meters Not recommended forgalvanic water treatmentindustrial process and waste waterultrapure watertherapeutic bathsbiotechnologysterilisation processes

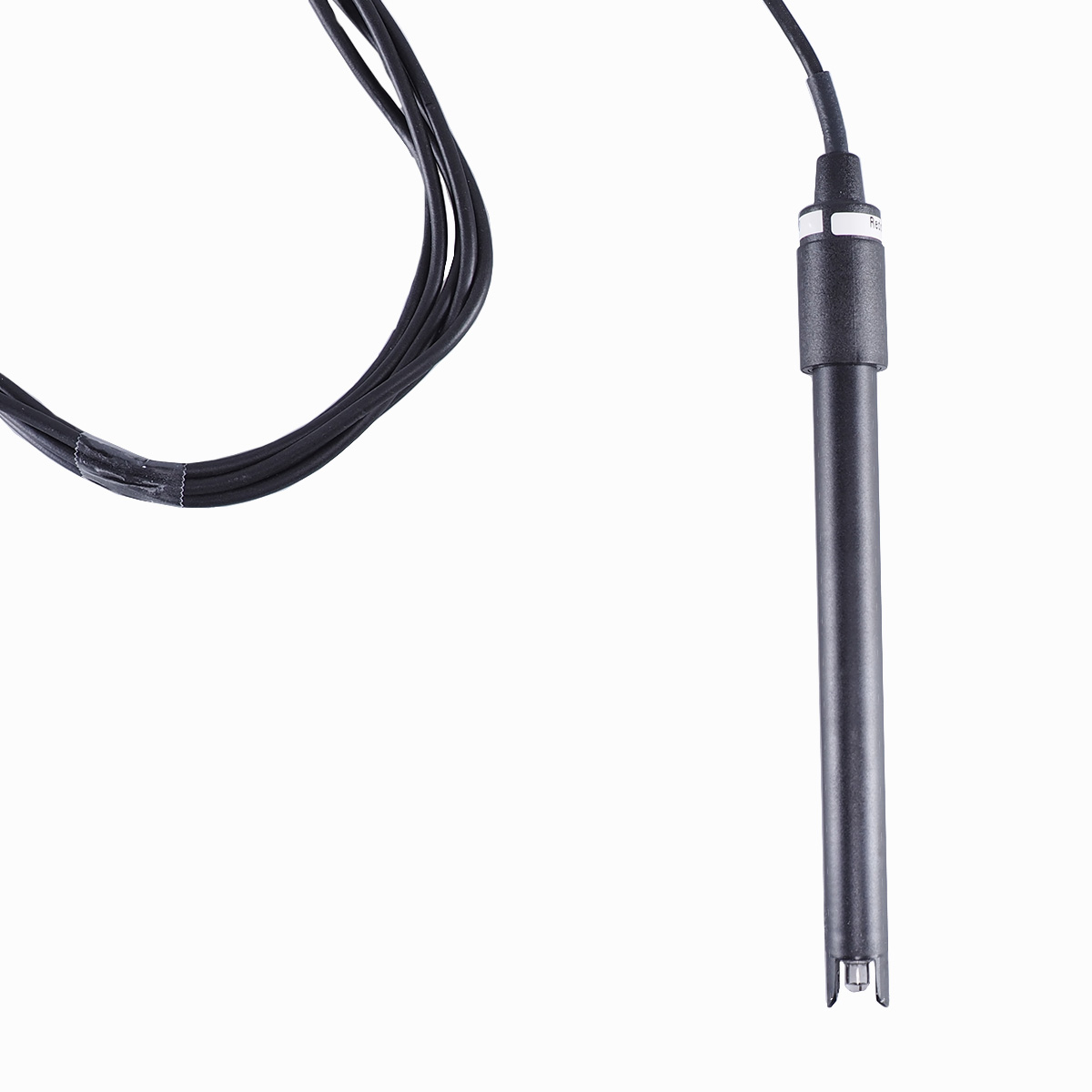

BlackLine pH/ORP electrodes with plastic shaft and fixed protection basket.Selected version: Without temperature sensor (not available for this series, only for Jumo tecLine and tecLine HD series)2 meter fixed cable with BNC plug, electrode head without threadGlass fibre diaphragm Plastic shaft PEI Fitting length 120mm (standard) Type code (can also be found on your electrode): Type 201010/65-22-45-2000-76-120/837 ; part-no. 00417301 The electrodes of the JUMO BlackLine series are high-quality measuring sensors with a favorable price/performance ratio.Active part pH The JUMO BlackLine plastic electrodes with fixed protection basket are equipped with the low-resistance JUMO UW glass. This guarantees fast and reliable measurement results. Active part redox The robust platinum tip ensures reliable measurements and is also easy to clean. Reference system The Black Line plastic shaft version PEI uses a polymerised KCl solid electrolyte. This is ideally suited for measurements in aqueous media. For measurements in media with fewer ions or at high flow rates, the electrolyte can be equipped with an optional "salt reservoir" to increase the service life. A polymerized KCl solid electrolyte is also used with this electrode, and the JUMO cartridge discharge system, which has been tried and tested for years, is used as the reference system. Here, the electrolyte remains free of silver ions over the lifetime of the sensor and is therefore less susceptible to electrode poisons. The JUMO BlackLine has a high-quality ceramic diaphragm. The shaft is made of black PPO and has a permanently integrated protective basket. Optionally, the electrodes can be supplied in a storage container (quiver). This is recommended if the sensor is only used sporadically, for refreshing the sensor after longer, intensive use or for longer storage periods. All sensors can be supplied as OEM versions on request. Special versions on request. Areas of applicationDrinking water monitoring and treatmentSwimming poolAquaristics (also seawater aquaristics)Greenhouse technology Lightly polluted industrial, process and waste water Rainwater, pond water and surface water hand-held meters Not recommended forgalvanic water treatmentindustrial process and waste waterultrapure watertherapeutic bathsbiotechnologysterilisation processes

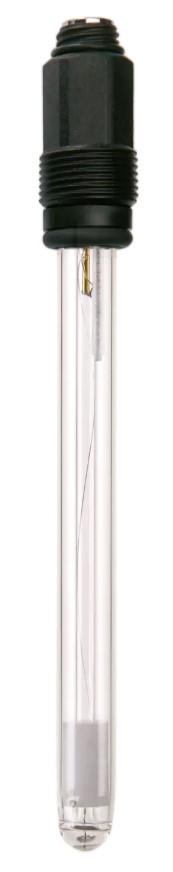

pH/ORP electrodes with glass shaftSelected version: ORP ±2000 mV without temperature sensor (not available for this series, only for Jumo tecLine and tecLine HD series) Screw head S8 Pg13.5 Ceramic diaphragm Installation length 120mm (standard) Type code (can also be found on your electrode): 201010/51-22-22-0000-00-120/000 ; part no. 00413906 The electrodes of the JUMO ecoLine series are high-quality measuring sensors with a favourable price/performance ratio.Active part pHJUMO ecoLine electrodes  are equipped with the low-resistance JUMO UW glass. This guarantees fast and reliable measurement results.Active part ORPA robust platinum tip provides reliable measured values and allows easy cleaning of the sensor.Reference systemA polymerised KCl solid electrolyte is used in the glass version. This is ideally suited for measurement in general aqueous media. aqueous media. For measurements in media with lower ion content or at high flow rates, the electrolyte can be the electrolyte can be equipped with an optional "salt reservoir" to increase the service life (if wished, please use our configurator). The JUMO cartridge discharge system, which has been tried and tested for years, is used as the reference system. Here, the electrolyte remains free of silver ions over the service life of the sensor. and therefore less susceptible to electrode poisons.Optionally, the electrodes can be supplied in a storage container (quiver). This is recommended for sporadic use of the sensor, for refreshing the sensor after longer, intensive use or for longer storage periods.All sensors can be supplied as OEM versions on request. Special versions on request.Areas of applicationDrinking water monitoring and treatmentSwimming pool - Aquaristics (also seawater aquaristics)Greenhouse technologyLightly polluted industrial, process and waste waterRainwater, pond water and surface waterhand-held measuring devicesNot recommended forgalvanic water treatmentindustrial process and waste waterultrapure watertherapeutic bathsbiotechnology, sterilisation processes

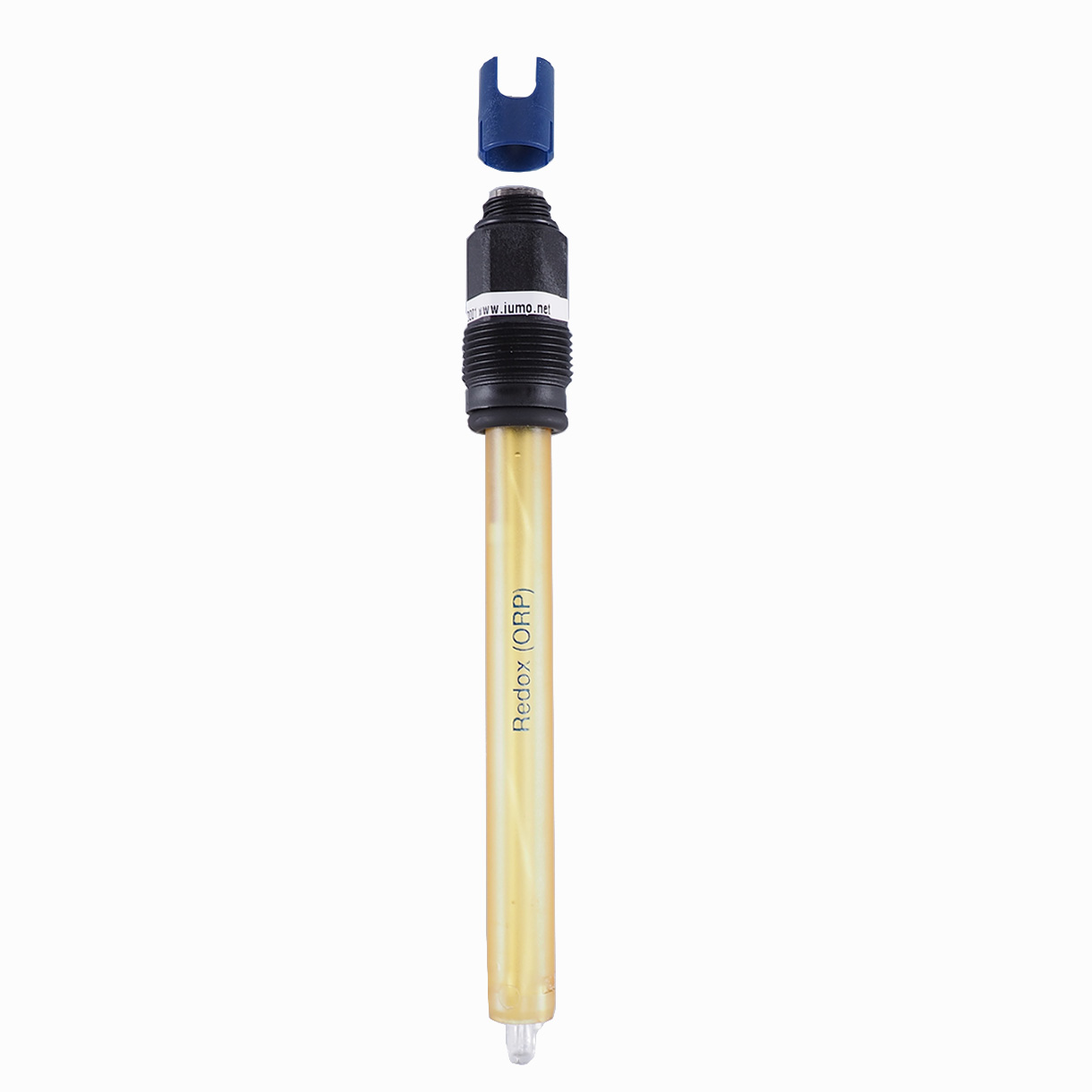

pH/ORP electrodes with plastic shaft and clip-on protection basketSelected version:ORPWithout temperature sensor (not available for this series, only for Jumo tecLine and tecLine HD series)Screw head S8 Pg13.5Glass silk diaphragmPlastic shaft PEIMounting length 120mm (standard)Type code (can also be found on your electrode): Type 201010/53-22-22-0000-00-120/000 ; Part No. 00357020 The electrodes of the JUMO ecoLine series are high-quality measuring sensors with a favorable price/performance ratio. Active part pHThe JUMO ecoLine plastic electrodes with clip-on protection basket are equipped with the low-resistance JUMO UW glass. This guarantees fast and reliable measurement results. Active part ORPThe robust platinum tip ensures reliable measured values and is also easy to clean. Reference systemA polymerised KCl solid electrolyte is used in the PEI plastic shaft version. This is ideally suited for measurements in general aqueous media. For measurements in media with fewer ions or at high flow rates, the electrolyte can be equipped with an optional "salt reservoir" to increase the service life. The JUMO cartridge discharge system, which has been tried and tested for years, is used as the reference system. Here, the electrolyte remains free of silver ions over the service life of the sensor and is therefore less susceptible to electrode poisons. JUMO ecoLine electrodes in the plastic shaft version made of transparent PEI have a glass-fiber diaphragm. A clip-on protective cage protects the sensor when used with hand-held measuring instruments. Optionally, the electrodes can be supplied in a storage container (quiver). This is recommended if the sensor is only used sporadically, for refreshing the sensor after longer, intensive use or for longer storage periods. All sensors can be supplied as OEM versions on request. Special versions on request.Areas of applicationDrinking water monitoring and treatmentSwimming poolAquaristics (also seawater aquaristics)Greenhouse technologyLightly polluted industrial, process and waste waterRainwater, pond water and surface waterhand-held measuring devicesNot recommended forgalvanic water treatmentindustrial process and waste waterultrapure watertherapeutic bathsbiotechnology, sterilisation processes

High-quality industrial electrodesProcess/industrial applicationswith gold tipdifferent insertion lengthsspecial types on requestSelected version:Basic type: JUMO tecLine redox combination electrode, glass shaftActive part: platinum capDiaphragm: 1x zirconium dioxideElectrical connection to electrode: screw head Pg13.5 (S8)Insertion length: 120mm (standard)Extra codes: Salt reserveOrder code: 201025/51-22-07-22-120/837

Typical areas of applicationindustrial waste water technologyprocess measurements, electroplating, paper industry, beverage industryoily waste watersuspensions, lacquers, media with solid particlesDouble-chamber design in the presence of electrode poisonsFluoride-containing (hydrofluoric acid-containing) media up to 1000 mg/l HFSpecial featuresDirt-repellent PTFE ring diaphragm with highly viscous KCl solution (gel) or perforated or annular gap diaphragm with polymerised solid electrolyte - practically blockage-freeCartridge discharge system with silver ion-free reference electrolytePressure-resistant versions up to 10 bar (50 °C)Temperature range: see order detailsOptional temperature sensors can be integratedOptional salt reservoir to increase service life in media with low conductivitySelected version:Basic type: Glass shaftActive part: Platinum capDiaphragm: PTFE ringElectrical connection to electrode: screw head Pg13.5 (S8)Insertion length: 120mm (standard)Extra codes: Salt reserveOrder code: 201025/51-22-04-22-120/837

High-quality industrial electrodesProcess/industrial applicationswith gold tipdifferent insertion lengthsspecial types on requestSelected version:Basic type: JUMO tecLine redox combination electrode, PEI plastic with protective cageActive part: Platinum domeDiaphragm: 1x glass fiberElectrical connection to electrode: screw head Pg13.5 (S8)Fitting length: 120mm (standard)Extra codes: Salt reserve, double chamber KCI/KCIOrder code: 201025/72-22-05-22-120/837, 838

This electrode is suitable for pool, groundwater and drinking water.Platinum - for standard applications in the pool and environmental sector as well as for normal or high temperature resistanceGold - used in connection with chlorine electrolysis and for normal or high temperature resistance

This electrode is suitable for swimming pools, water treatment, drinking water, boiler feed water and municipal sewage treatment plants. Platium - ElectrodeGold - Electrode

This electrode is suitable for swimming pools, water treatment, drinking water, boiler feed water and municipal sewage treatment plants. Platium - ElectrodeGold - Electrode

This electrode is for swimming pools and industrial water treatment systems suitable.
