JUMO screw-in RTD temperature probes with form J connection head, with continuous protection tube
€223.60*
Please log in to receive your conditions.
Available, delivery time:
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "JUMO screw-in RTD temperature probes with form J connection head, with continuous protection tube"

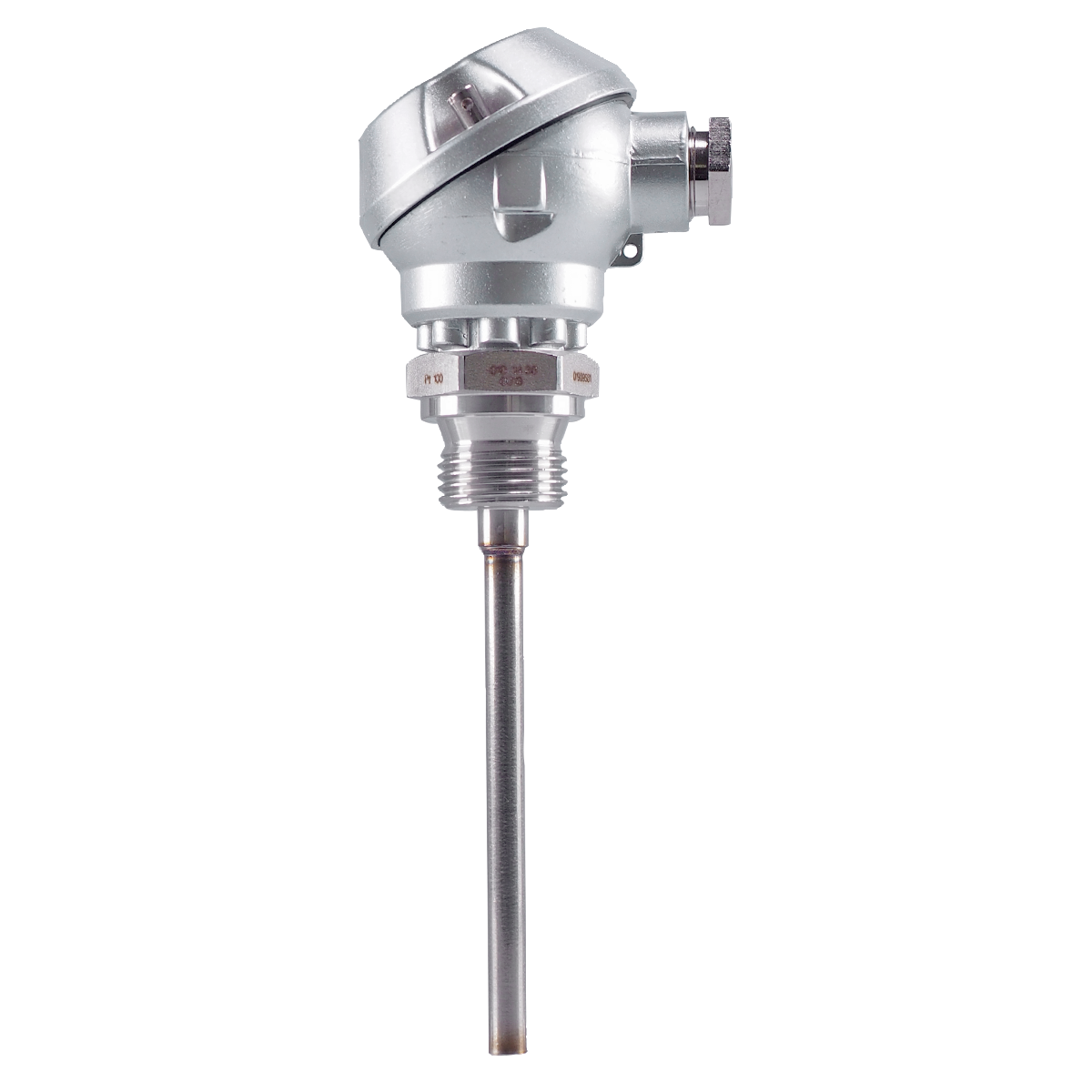

Screw-in resistance thermometer with form J connection head
Type: 902030/10-647-1003-1-6-100-104/330,(0..100°C)
- With continuous protection tube
- Measuring range from -20 to +150 °C
- Single resistance thermometer
- 1x Pt 100 in two-wire circuit
- Tolerance class: Class B (standard)
- Thermowell diameter: 6 mm
- Installation length: 100 mm
- Process connection: screw connection G ½
- Extra codes: 1x analogue transmitter, output 4 to 20 mAa
The screw-in RTD temperature probe with connection head is specially designed for use in various industries such as air conditioning and refrigeration technology and heating, furnace and apparatus engineering. It offers precise temperature measurement in both liquid and gaseous media, with a temperature range of -50 to +400 °C.
The installation design of this thermometer ensures reliable tightness, even under extreme conditions of negative and positive pressure.
The measuring insert is fitted as standard with a Pt100 temperature sensor in accordance with the DIN EN 60751:2009 / IEC 60751:2008 standards. This sensor has a temperature coefficient α of 3.850 × 10-3 °C-1 and is installed in a two-wire circuit. Versions with Pt500 or Pt1000 are also available as an option. For more precise measurement results, the connection can be made either in a three-wire or four-wire circuit, and it is also possible to integrate a transmitter into the connection head.
Depending on the measurement requirements, a single or dual resistance thermometer can also be selected.
Dimensions
| Height | 5 cm |
|---|---|
| Length | 18 cm |
| Width | 18 cm |
Weight
| Weight | 243 g |
|---|
Other attributes
| Country of origin | DE |
|---|---|
| Customs tariff number | 90251900 |
| Einbaulänge in mm | 100 mm |
| Messeinsatz | 1x Pt 100 Zweileiterschaltung |
| Prozessanschluss Verschraubung | G 1/2 |
| Temperaturbereich | -20°C ... +150°C |
|
Connection head: |
Form J, die-cast aluminium, M16 × 1.5; IP65, ambient temperature -40 to +100 °C Attention: reduced ambient temperature when using transmitters, data sheet 707030. If the design permits, yellow connection heads are used for SIL and PL applications (extra codes 658 and 659). Exceptions are sensors for use in alkaline environments and sensors for which LABS freedom is mandatory. |
|
Process connection: |
Thread, stainless steel 1.4571 |
|
Thermowell: |
Stainless steel 1.4571, Ø 6 mm and Ø 8 mm |
|
Measuring insert: |
Pt100 temperature sensor, DIN EN 60751:2009 / IEC 60751:2008, class B, two-wire circuit |
|
Response times: |
t0.5 = 8 s, t0.9 = 20 s, in water 0.4 m/s, Ø 8 mm t0.5 = 5 s, t0.9 = 12 s, in water 0.4 m/s, Ø 6 mm t0.5 = 40 s, t0.9 = 110 s, in air 3.0 m/s, Ø 6 mm t0.5 = 2 s, t0.9 = 5 s, in water 0.4 m/s, Ø 6 mm reduced to Ø 3.5 mm t0.5 = 25 s, t0.9 = 85 s, in air 3.0 m/s, Ø 6 mm stepped down to Ø 3.5 mm t0.5 = 1 s, t0.9 = 2 s, in water 0.4 m/s, Ø 6 mm reduced to Ø 2.6 mm t0.5 = 18 s, t0.9 = 65 s, in air 3.0 m/s, Ø 6 mm stepped down to Ø 2.6 mm |
|
Measuring transducer: |
analogue transmitter, output 4 to 20 mA, data sheet 707030 |
|
Accessories: |
Protective sleeve, data sheet 909710 |
