LAB2B Ozone Generator

The LAB2B is a corona discharge type ozone generator with variable ozone output up to 10 g/h ozone in oxygen and 4 g/h ozone using dried air.

The air-cooled ozone generator is enclosed in an compact desktop housing for bench use.

Applications

• Research and development
• Education
• Laboratories

Technology and how it works

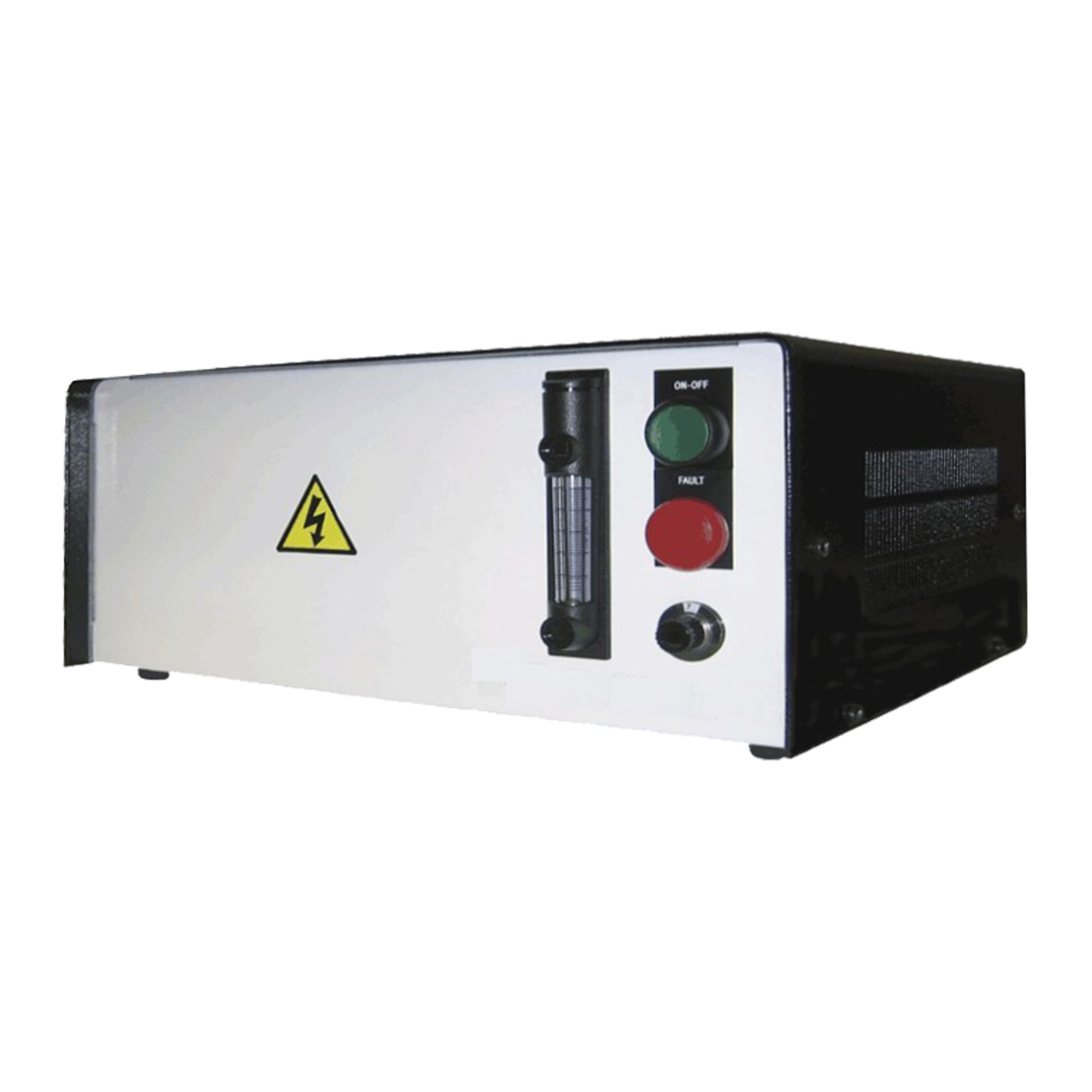

The Ozone generator LAB2B is built in a small desktop housing with air cooler, especially suited for laboratory application. The instrument consists of operation displays, flow meter for the feedgas and a controller for the variable power adjustment. The ozone output is adjustable via a rotary knob at the font side of the housing. The LAB2B can be operated with oxygen or dried air.Ozone is produced when oxygen containing gas is passed over the ceramic dielectric of an ozone generating module. The module is powered by a high voltage/high frequency power board.The ceramic dielectric is housed within a finned heat sink block which is air cooled by fan assisted atmospheric air.

Technical features

• Variable ozone production up to 10 g/h
• Operating method: vacuum or pressure (10psi max.)
• Illuminating switches indicating ozone production and faults
• Ozone generating module cooling medium: ambient air (fan assisted)
• O&M manual including performance graphs
• Feedgas: oxygen or dried air
• Dimensions: (LxWxD): 230 mm x 300 mm x 160 mm
• Connections: PVDF compression fitting to suit 8 mm pipe / tube
• Flowmeter: 2-10 l/min
• Enclosure: 316 mild steel, epoxy-coated
• Ozone generating module: 316 stainless steel electrode assembly inside a ceramic dielectric tube

Remote controls and signals

• Ozone ON-OFF: green illuminator switch
• Fault: red illuminator switch

Power supply

230 VAC, 50-60 Hz
