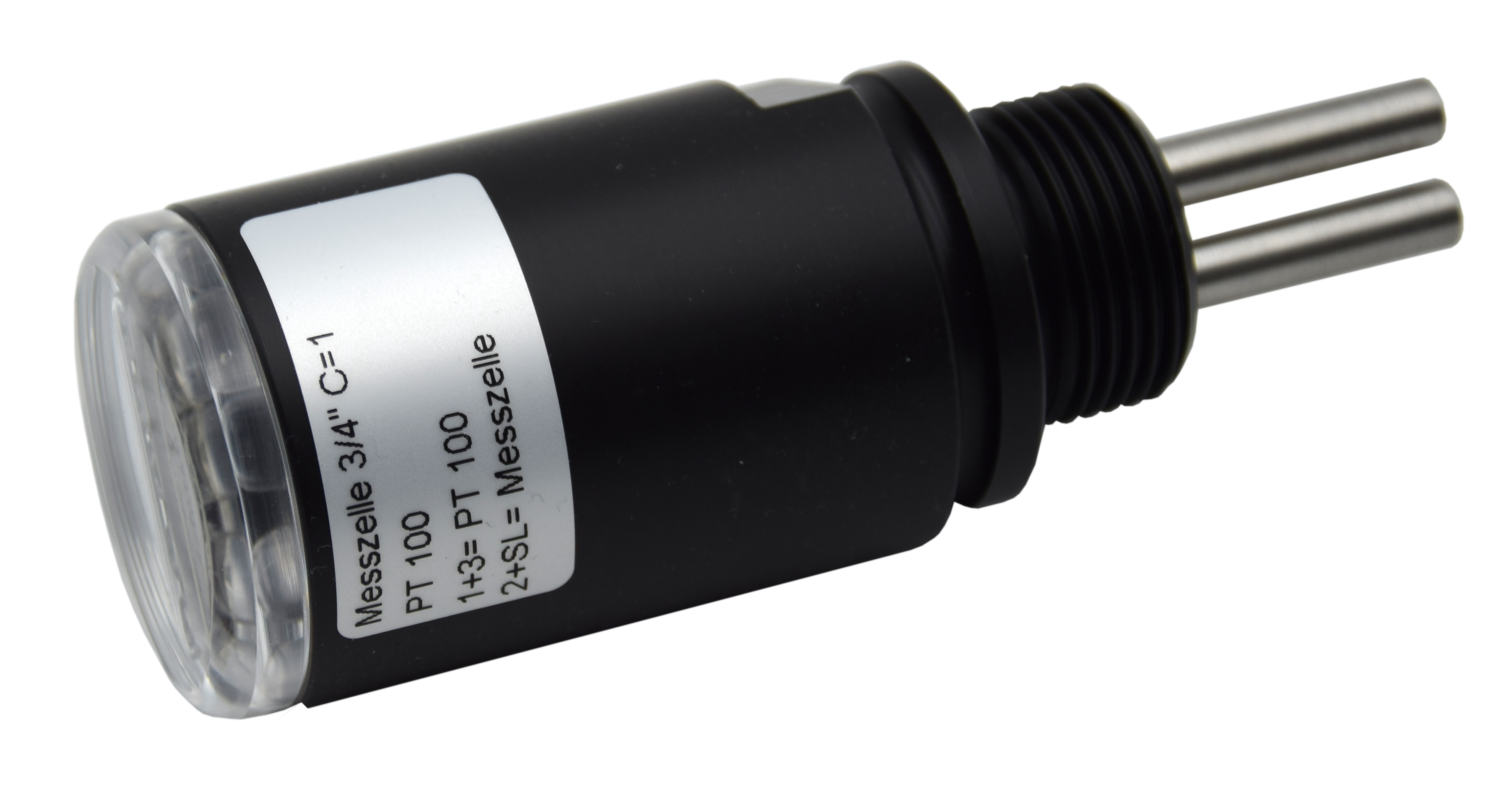

N-LED10, conductivity measuring instrument 0-10μS/cm with 5 LEDs and integrated 3/4" screw-in measuring cell
Product number: 880635M.4
€138.00*
Please log in to receive your conditions.
Available in 14 days, delivery time 1-2 days
Product number:
880635M.4
GTIN:
4068823011906
Measuring range:
0-10 μS/cm
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "N-LED10, conductivity measuring instrument 0-10μS/cm with 5 LEDs and integrated 3/4" screw-in measuring cell"
Technical data:
Measuring range: 0 - 10 μS/cm (without temperature compensation)
<0.1 <0.5 < 1.0 < 5.0 < 10 μS/cm
LED display: 3x green; 1x yellow; 1x red
Power supply: 100-240 VAC plug-in power supply unit
Energy consumption: < 500 mW
Housing material: POM black (polyoxymethylene)
Viewing window material: PMMA (acrylic glass)
Electrodes: Stainless steel 1.4571
Dimensions: Diameter 40 mm x 68 mm (Top) / 110 mm (Total)
Gasket electrodes: EPDM
Gasket housing: EPDM
Application limits: Pressure max.: 6 bar; Temperature max.: 60 °C
Protection class: IP 65*

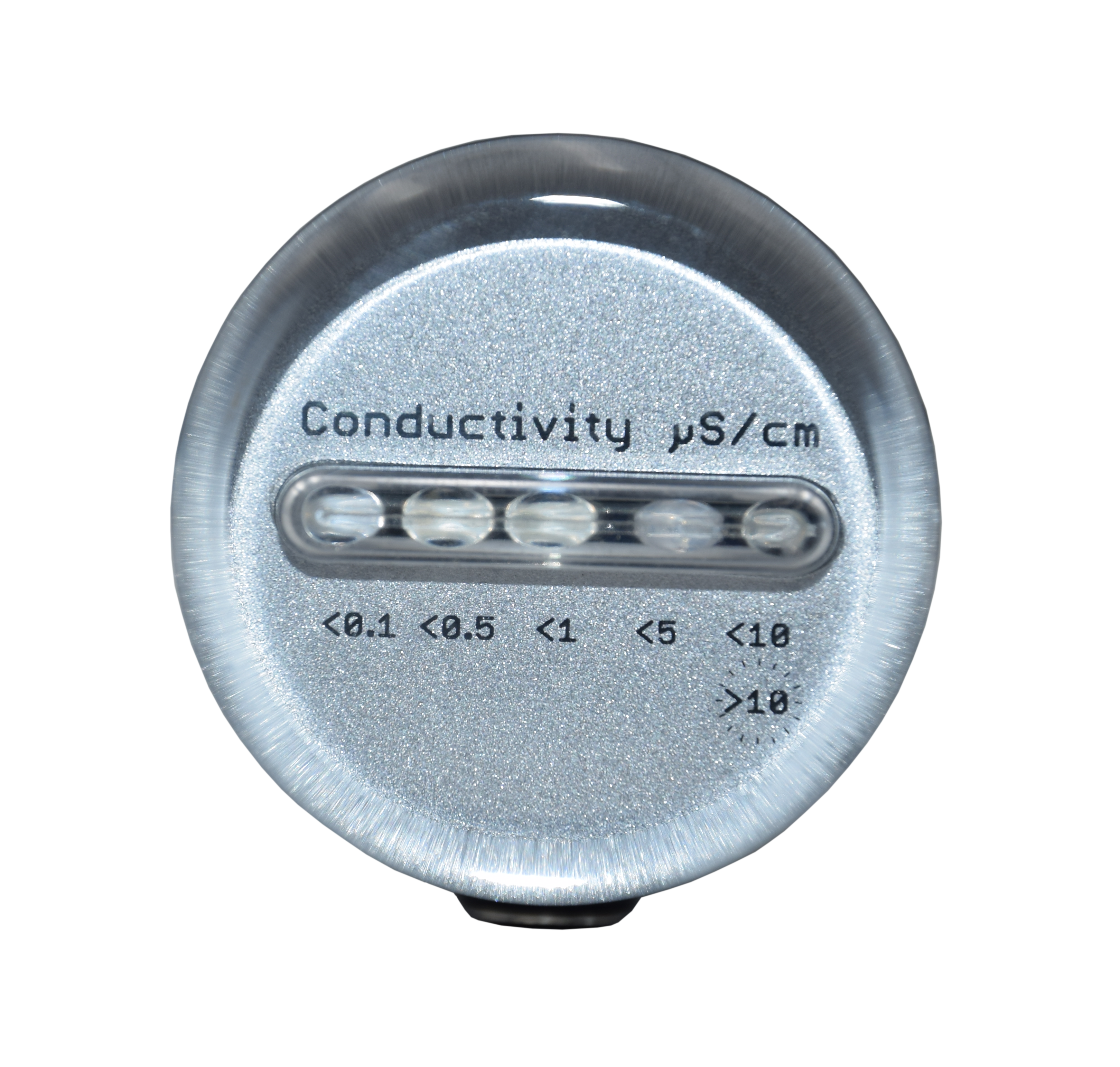

Display Measuring range
3 LED green < 0.1 μS/cm
2 LED green < 0.5 μS/cm
1 LED green < 1.0 μS/cm
1 LED yellow < 5 μS/cm
1 LED red < 10 μS/cm
1 LED red flashing ≥ 10 μS/cm
