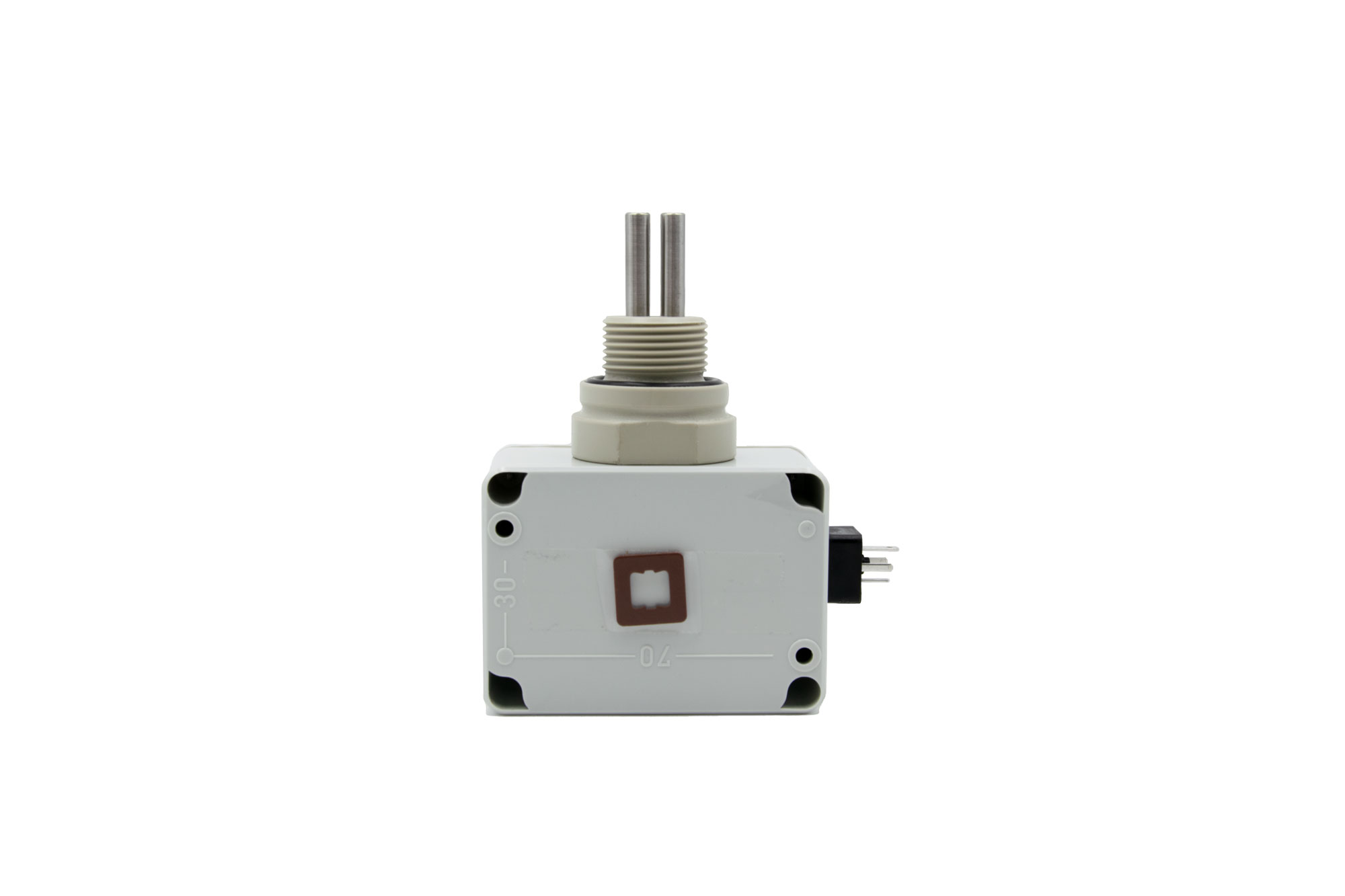

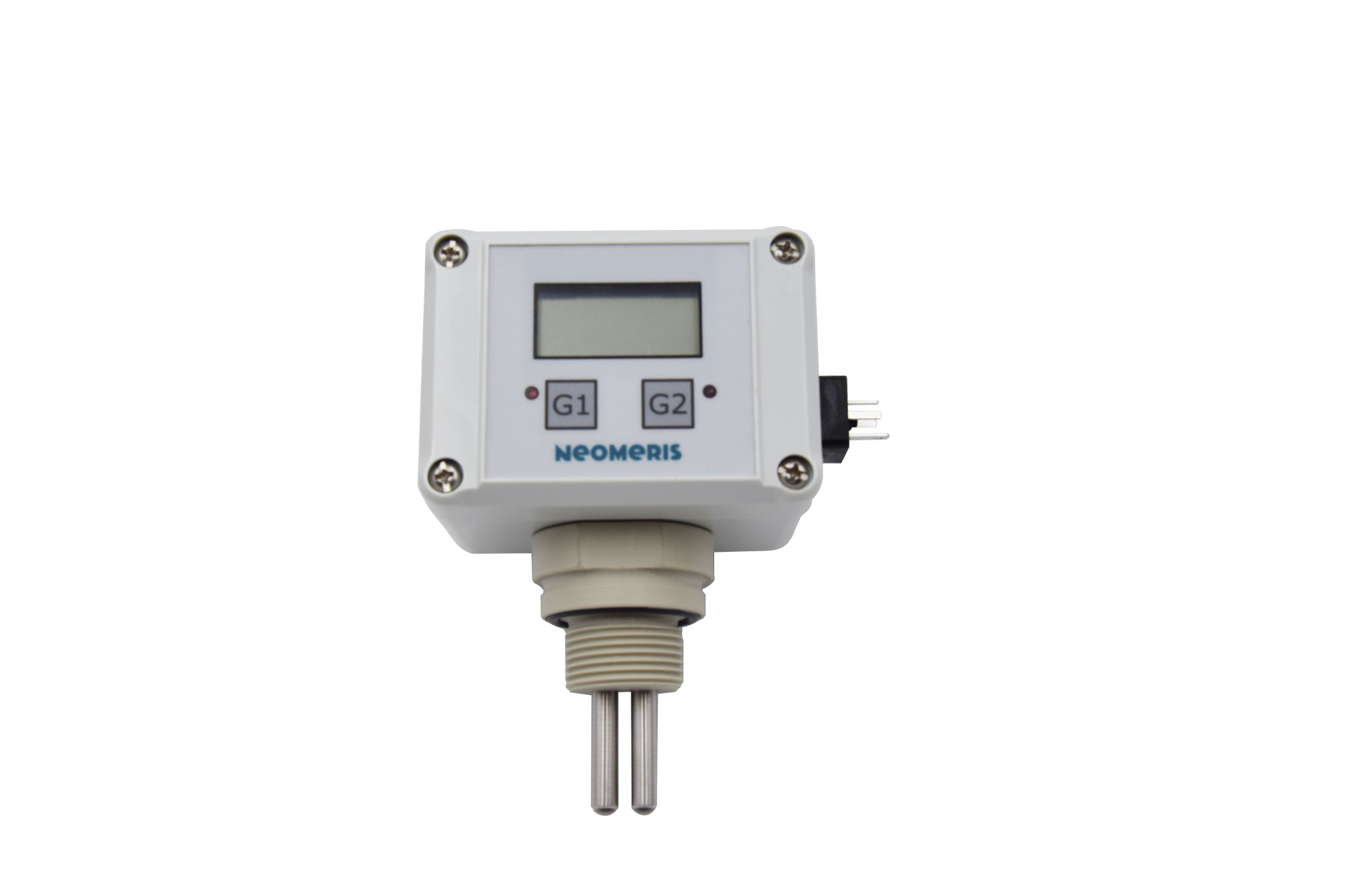

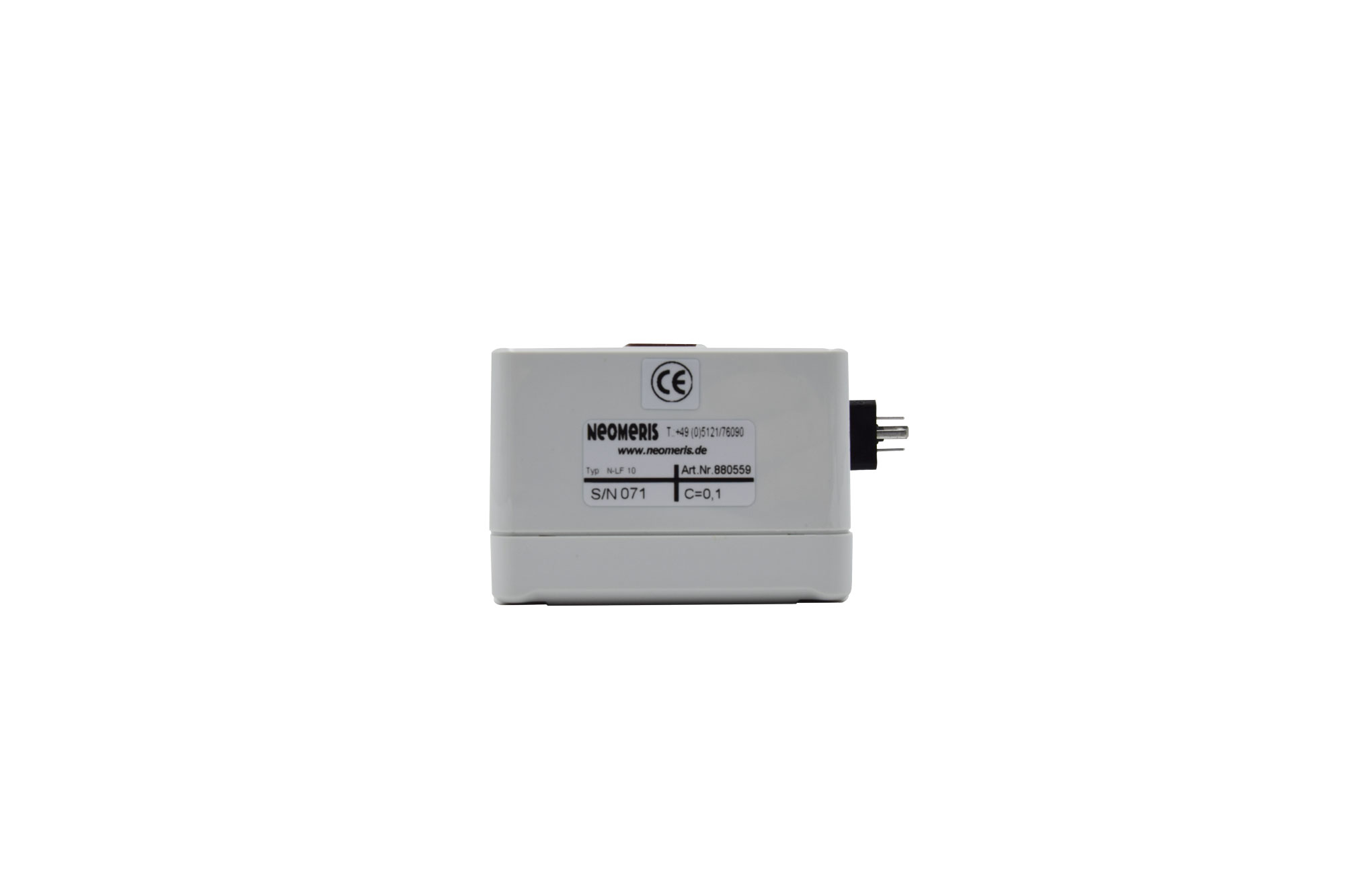

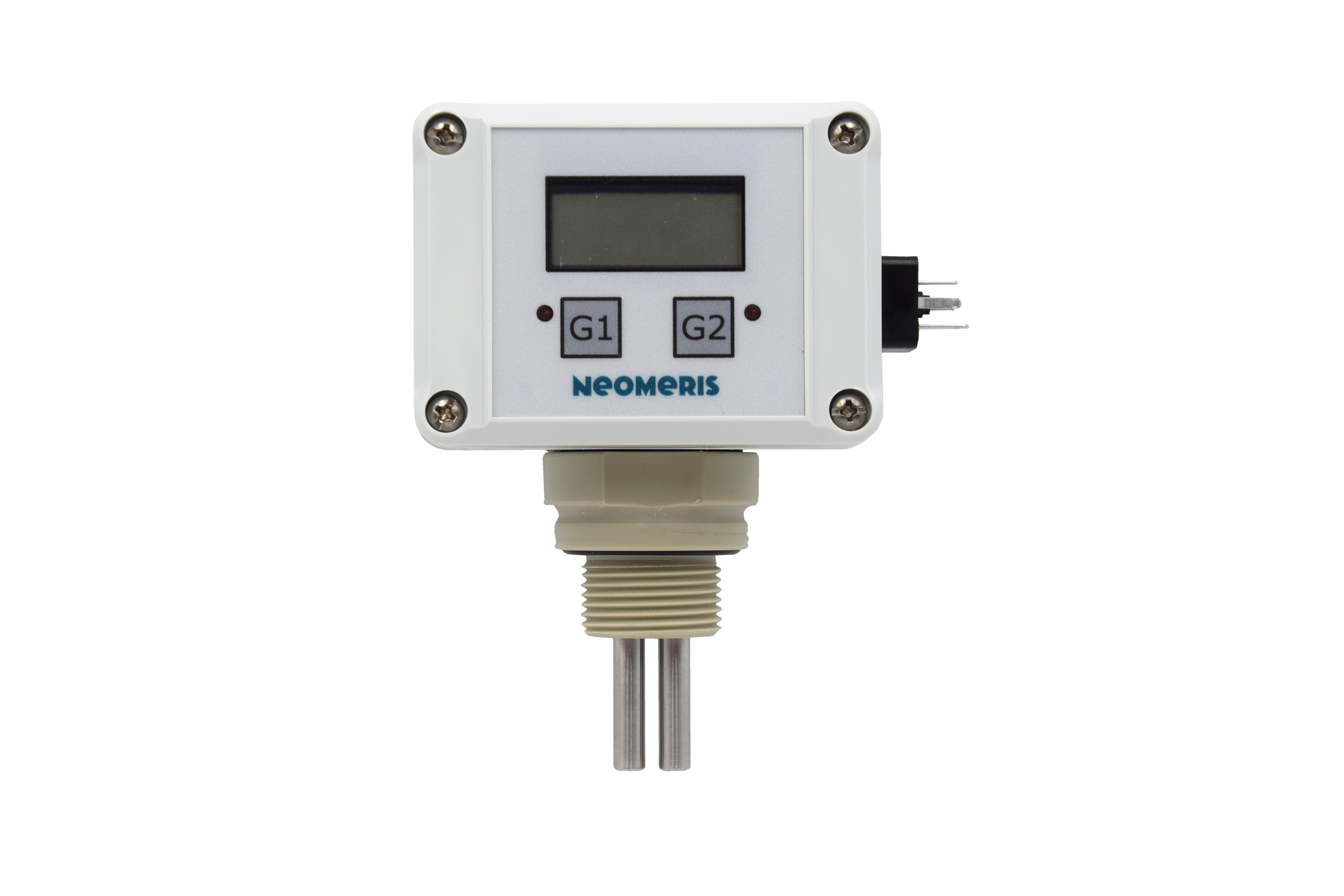

N-LF10 conductivity meter 0-10 µS with integrated 3/4" screw-in measuring cell
Product number: 880559
€286.30*
Please log in to receive your conditions.
Available in 30 days, delivery time 1-2 days
Product number:
880559
GTIN:
4260682383921
Menu navigation:
German / English
Our comment:
Would you like an OEM version with your company label or a different measuring range? Please contact us, because a realization is already possible for small quantities.
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "N-LF10 conductivity meter 0-10 µS with integrated 3/4" screw-in measuring cell"
Device for measuring the electrical conductivity of aqueous solutions in conjunction with an integrated two-electrode screw-in measuring cell 3/4 inch without temperature compensation.
The devices are selected according to the respective measuring range and are available as a variant with or without potential-free relay output.
Application examples
- softener cartridges
- complete desalination
- reverse osmosis
Added value

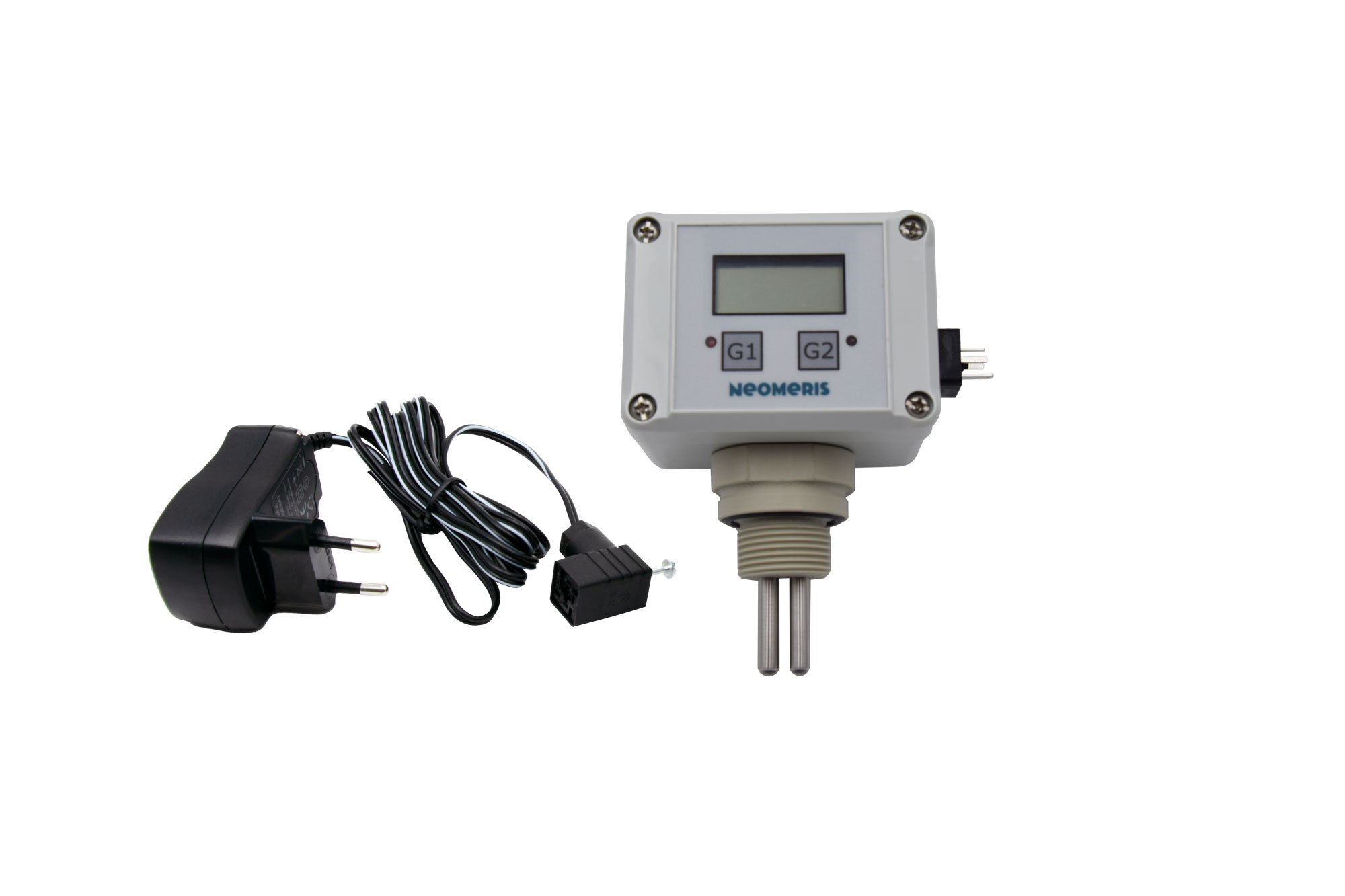

- Operation at 9 V DC via supplied plug-in power supply
- 1 potential-free relay with switchable mode of operation of relay control
- Limit value display optically by means of LEDs
Technical data
- Measuring ranges: 0 - 10 / 100 / 1000 μS/cm, depending on instrument type
- Limit value displays: Optical by means of LEDs, limit values adjustable between 0 and 100 % of the measuring range
- 1 potential-free relay contact, max. 2 A / 250 V AC, 60 W / 62.5 VA (if selected)

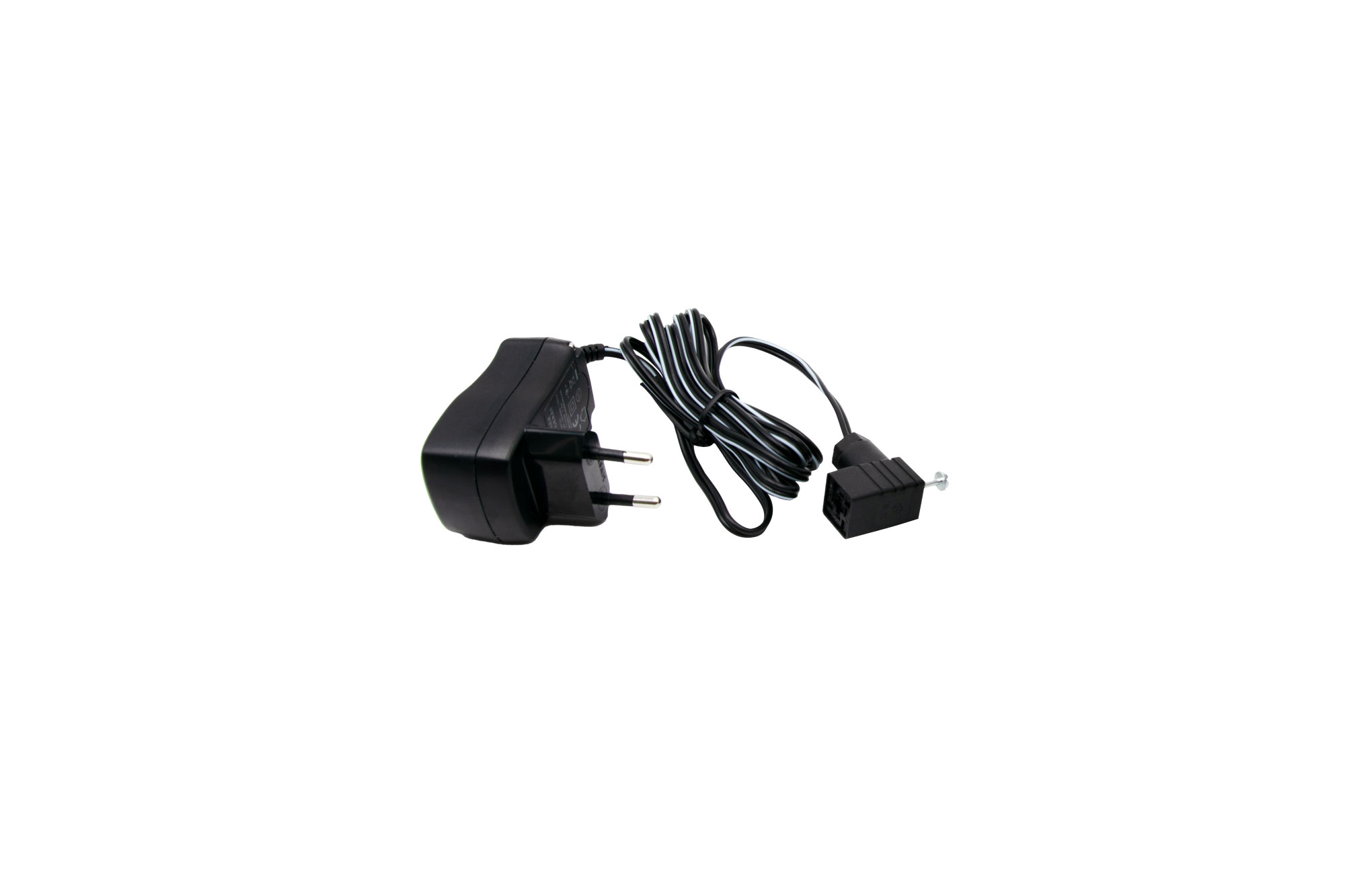

- Power supply: 9 V DC via plug-in power supply unit 100 - 240 V AC
- Power consumption: approx. 1 W
- Protection class: IP 65
- Housing: polycarbonate housing, 82 x 60 x 57 mm

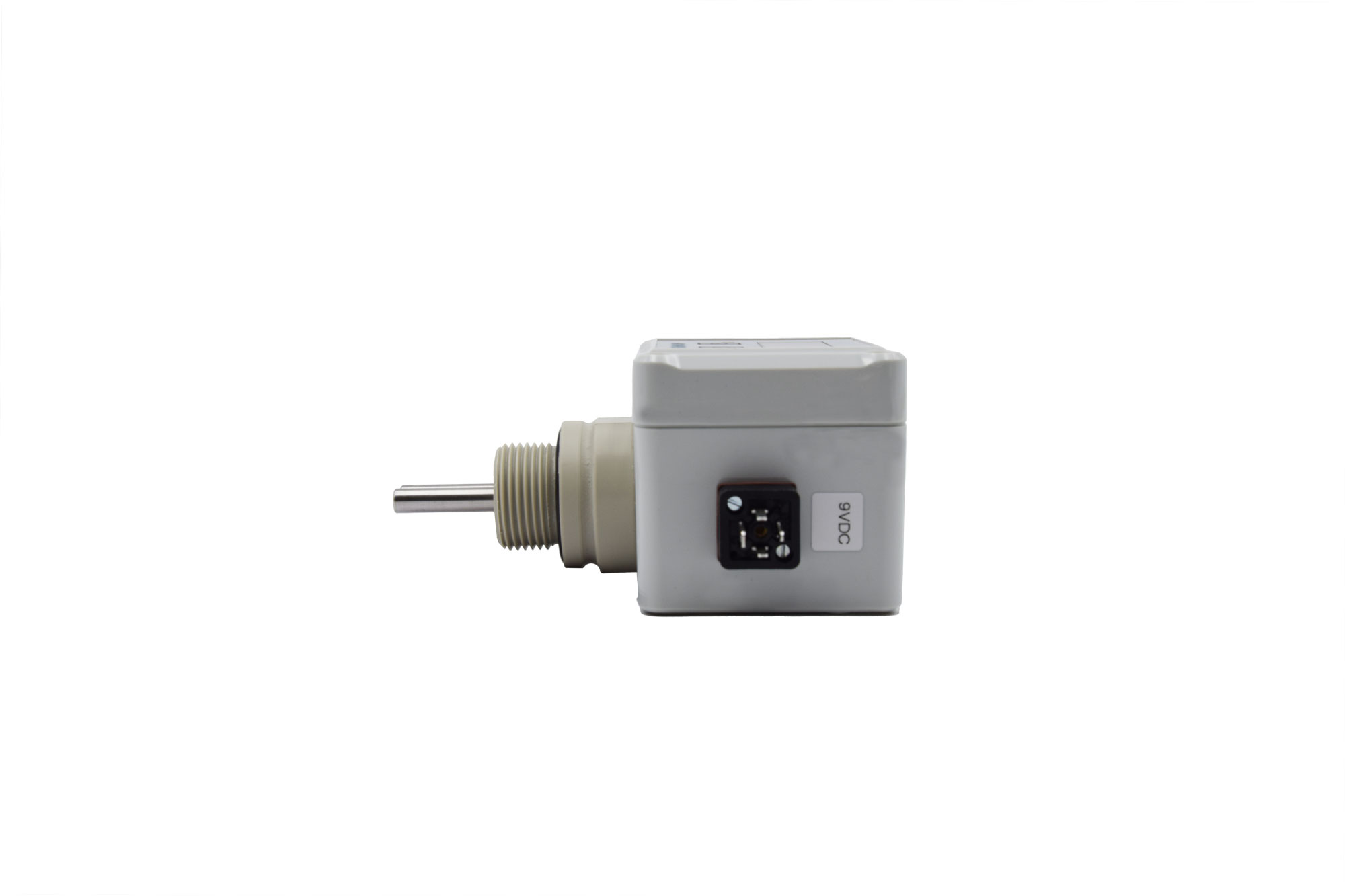

- Connections: side connection for plug-in power supply and one relay output (if selected)
- Measuring cell: ¾", PP, PN 6, Tmax. 60°C
Dimensions
| Height | 8 cm |
|---|---|
| Length | 26 cm |
| Width | 14 cm |
Weight
| Weight | 290 g |
|---|
Other attributes
| Country of origin | EU |
|---|---|
| Customs tariff number | 90278930 |
