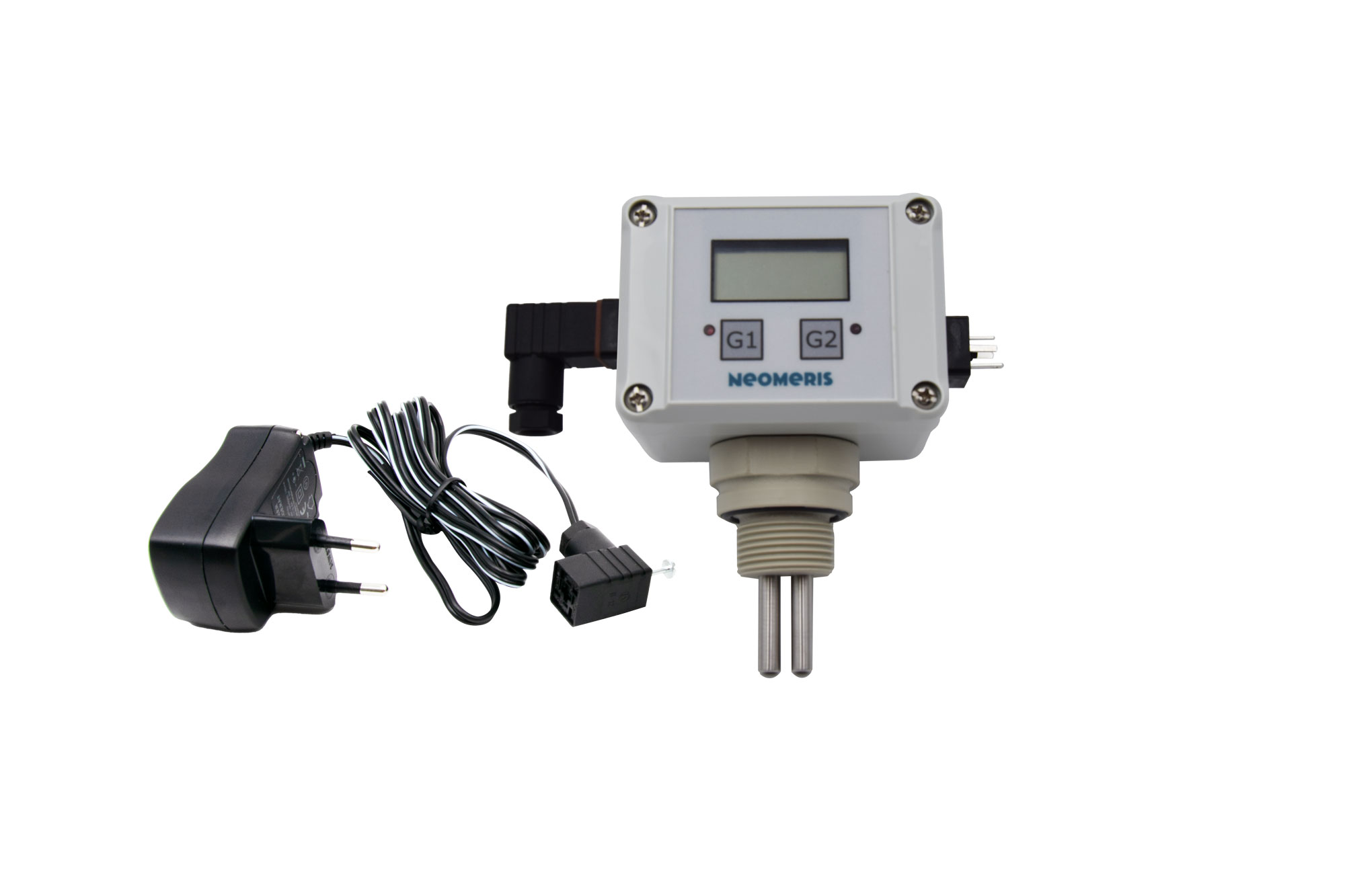

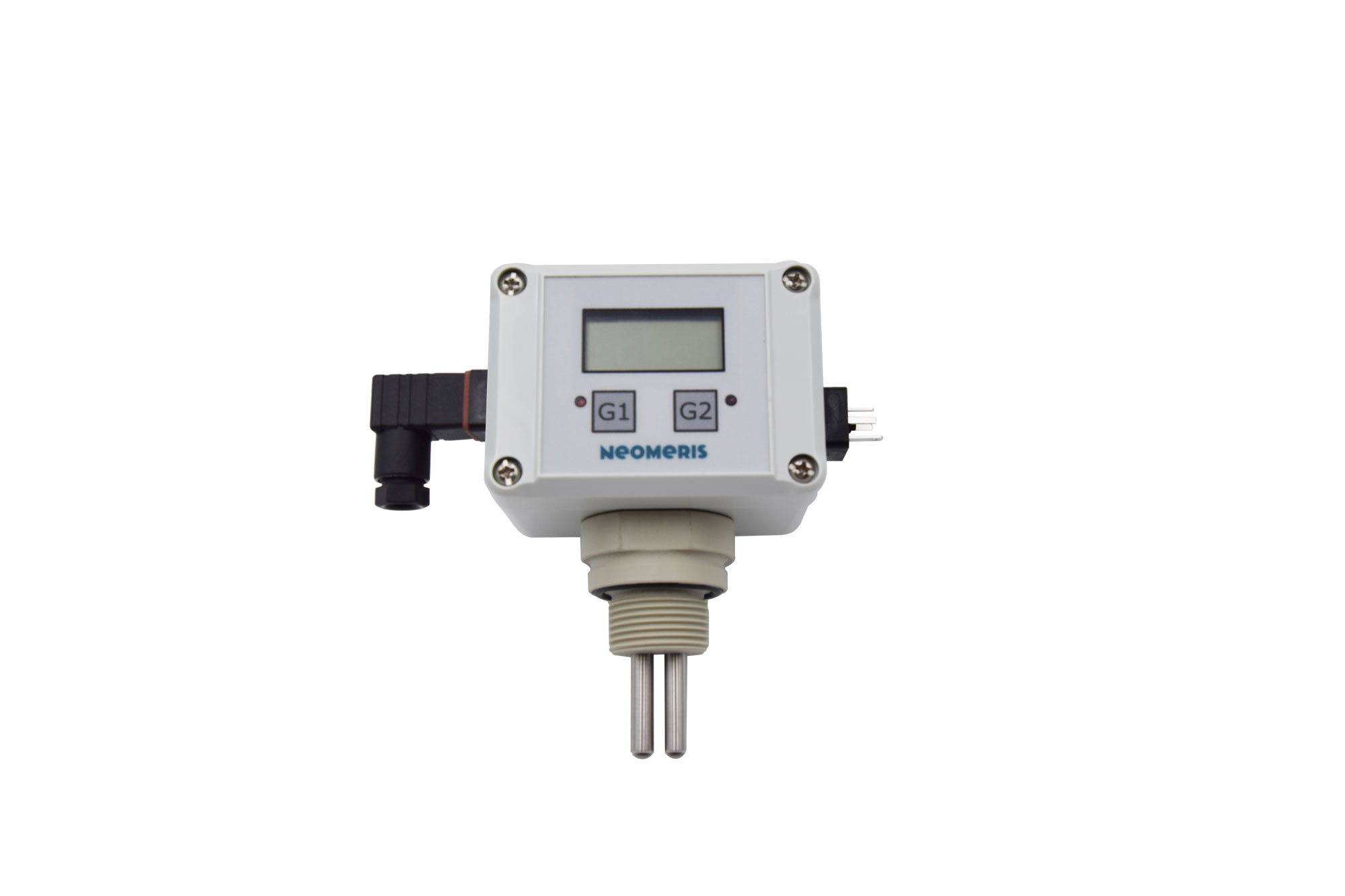

N-LF100R conductivity meter with relay output 0-100 µS - integrated 3/4" screw-in measuring cell

Product number: 880563

Product information "N-LF100R conductivity meter with relay output 0-100 µS - integrated 3/4" screw-in measuring cell"

Device for measuring the electrical conductivity of aqueous solutions in conjunction with an integrated two-electrode screw-in measuring cell 3/4 inch without temperature compensation.
The devices are selected according to the respective measuring range and are available as a variant with or without potential-free relay output.

Application examples
  • softener cartridges
  • complete desalination
  • reverse osmosis
Added value
  • Operation at 9 V DC via supplied plug-in power supply
  • 1 potential-free relay with switchable mode of operation of relay control
  • Limit value display optically by means of LEDs

Technical data
  • Measuring ranges: 0 - 10 / 100 / 1000 μS/cm, depending on instrument type
  • Limit value displays: Optical by means of LEDs, limit values adjustable between 0 and 100 % of the measuring range
  • 1 potential-free relay contact, max. 2 A / 250 V AC, 60 W / 62.5 VA (if selected)

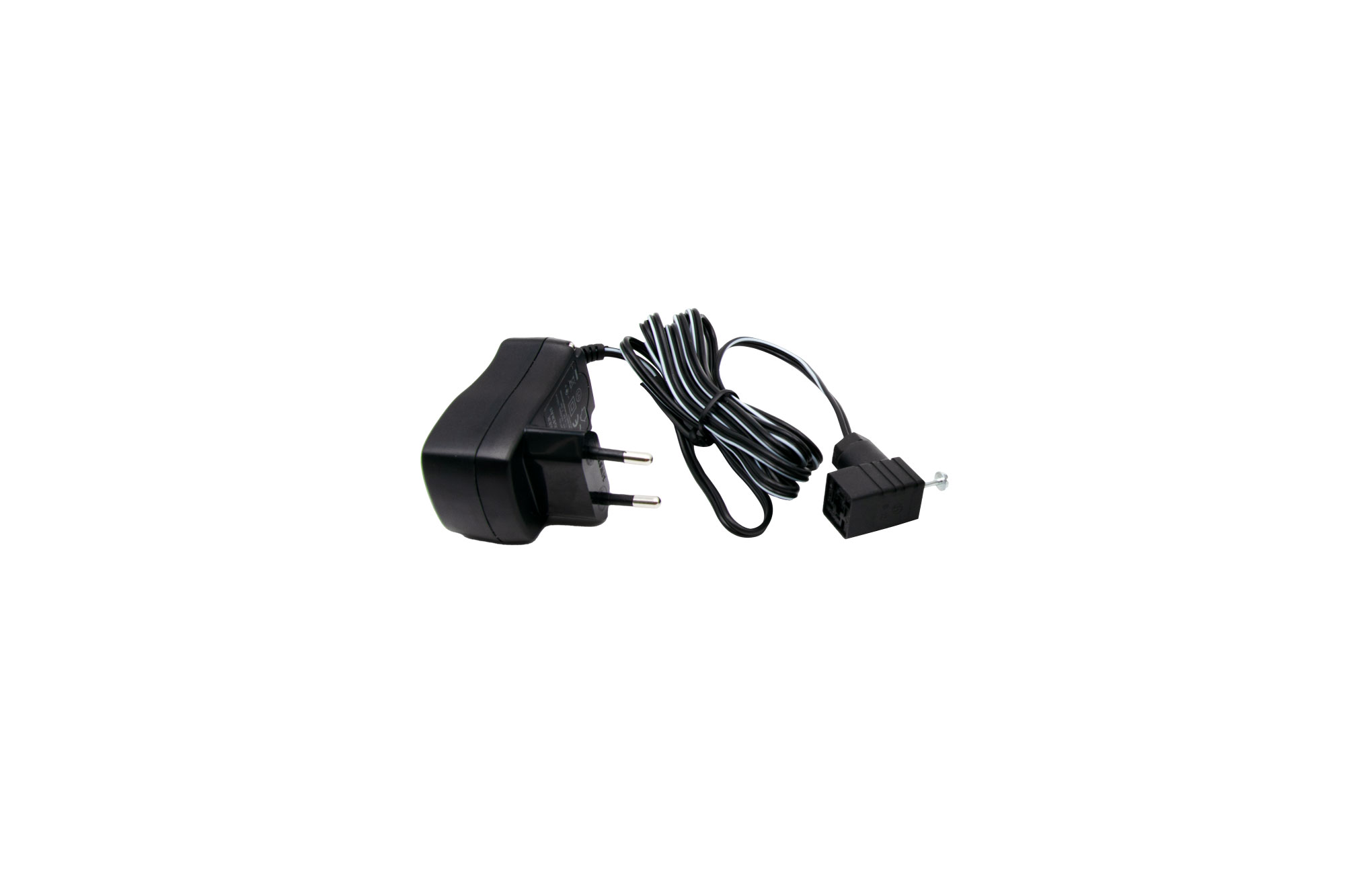

  • Power supply: 9 V DC via plug-in power supply unit 100 - 240 V AC
  • Power consumption: approx. 1 W
  • Protection class: IP 65

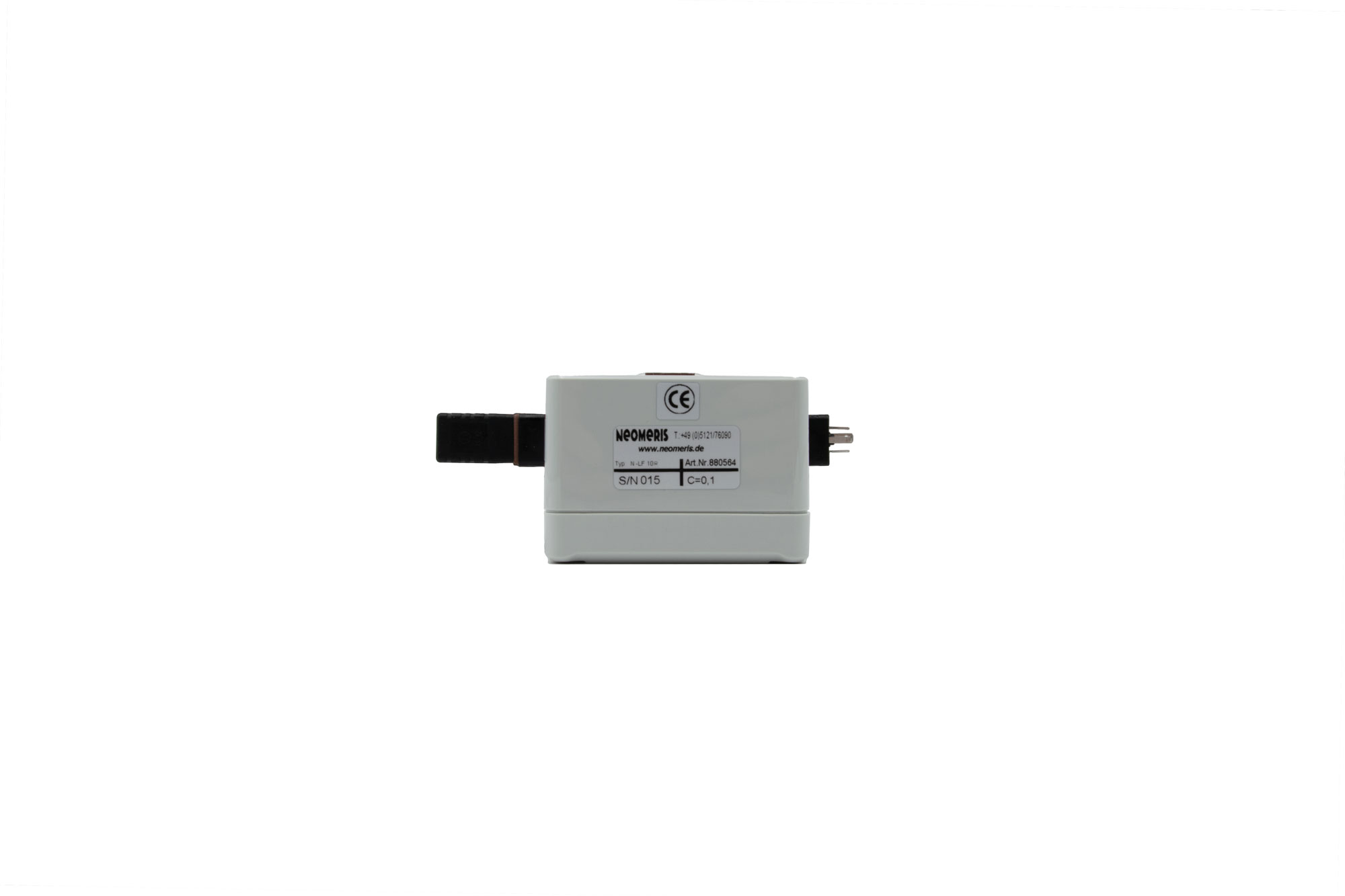

  • Housing: polycarbonate housing, 82 x 60 x 57 mm
  • Connections: side connection for plug-in power supply and one relay output (if selected)

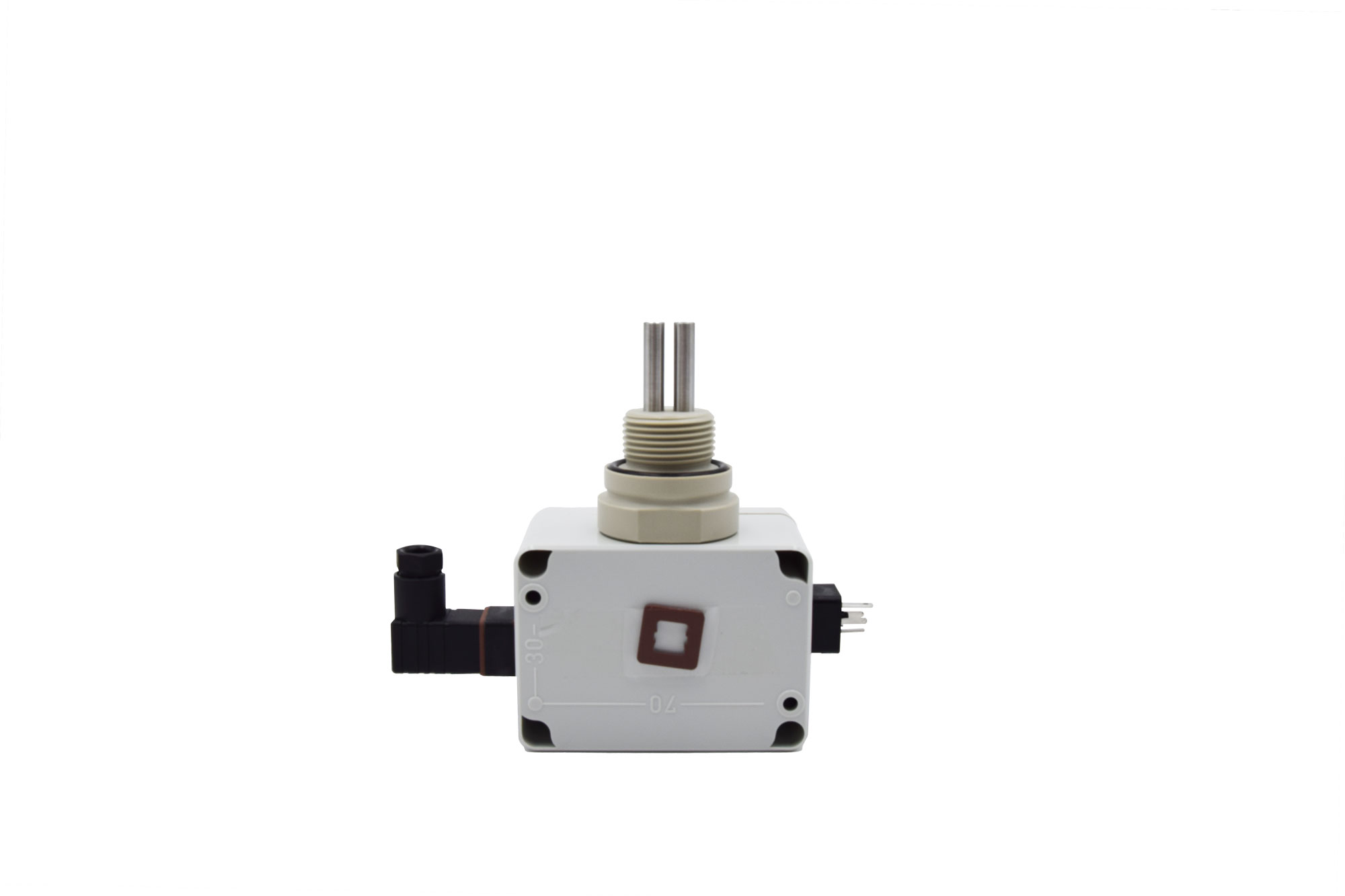

  • Measuring cell: ¾", PP, PN 6, Tmax. 60°C

Dimensions

Height 6 cm
Length 21 cm
Width 14 cm

Weight

Weight 300 g

Other attributes

Country of origin DE
Customs tariff number 90278930
