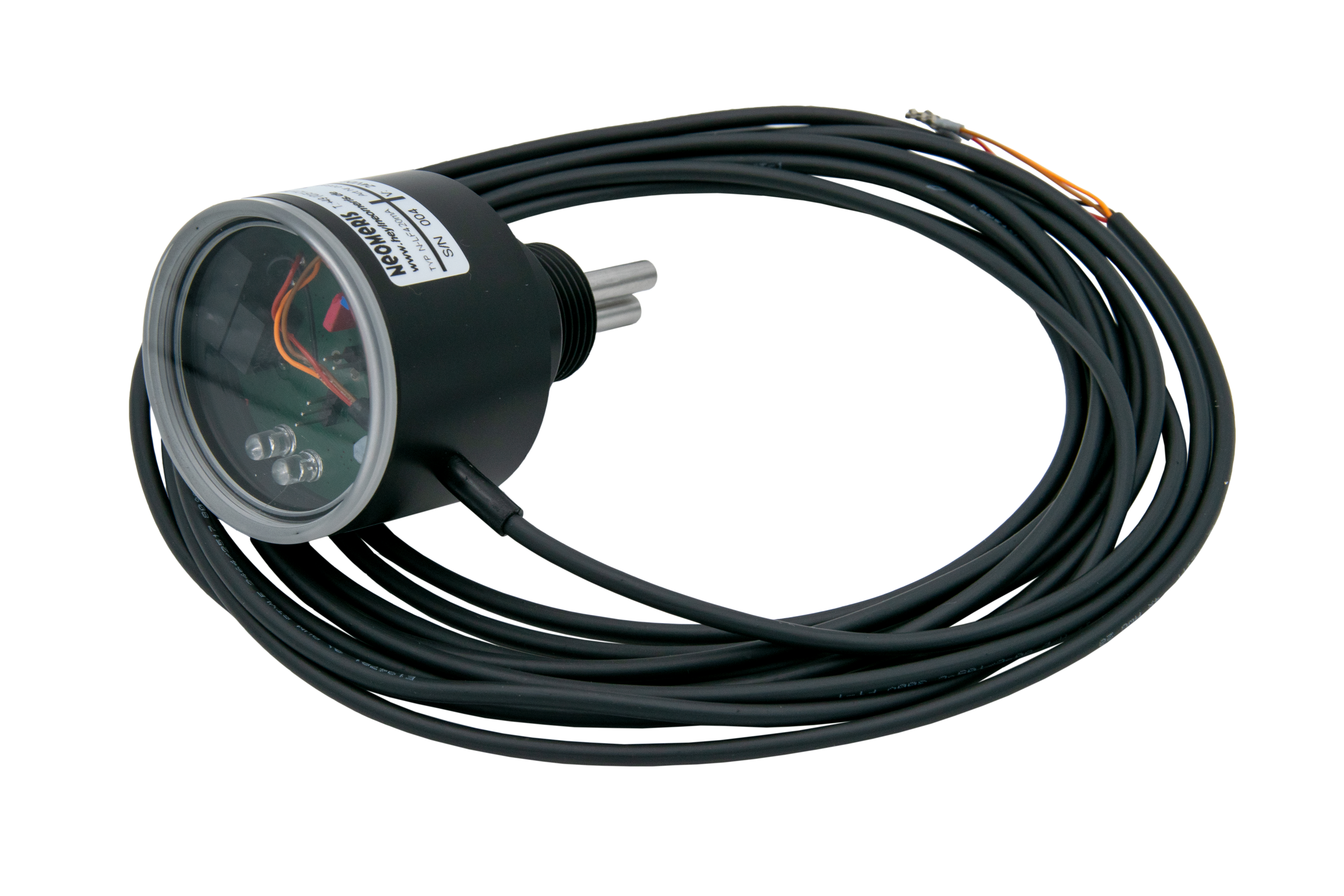

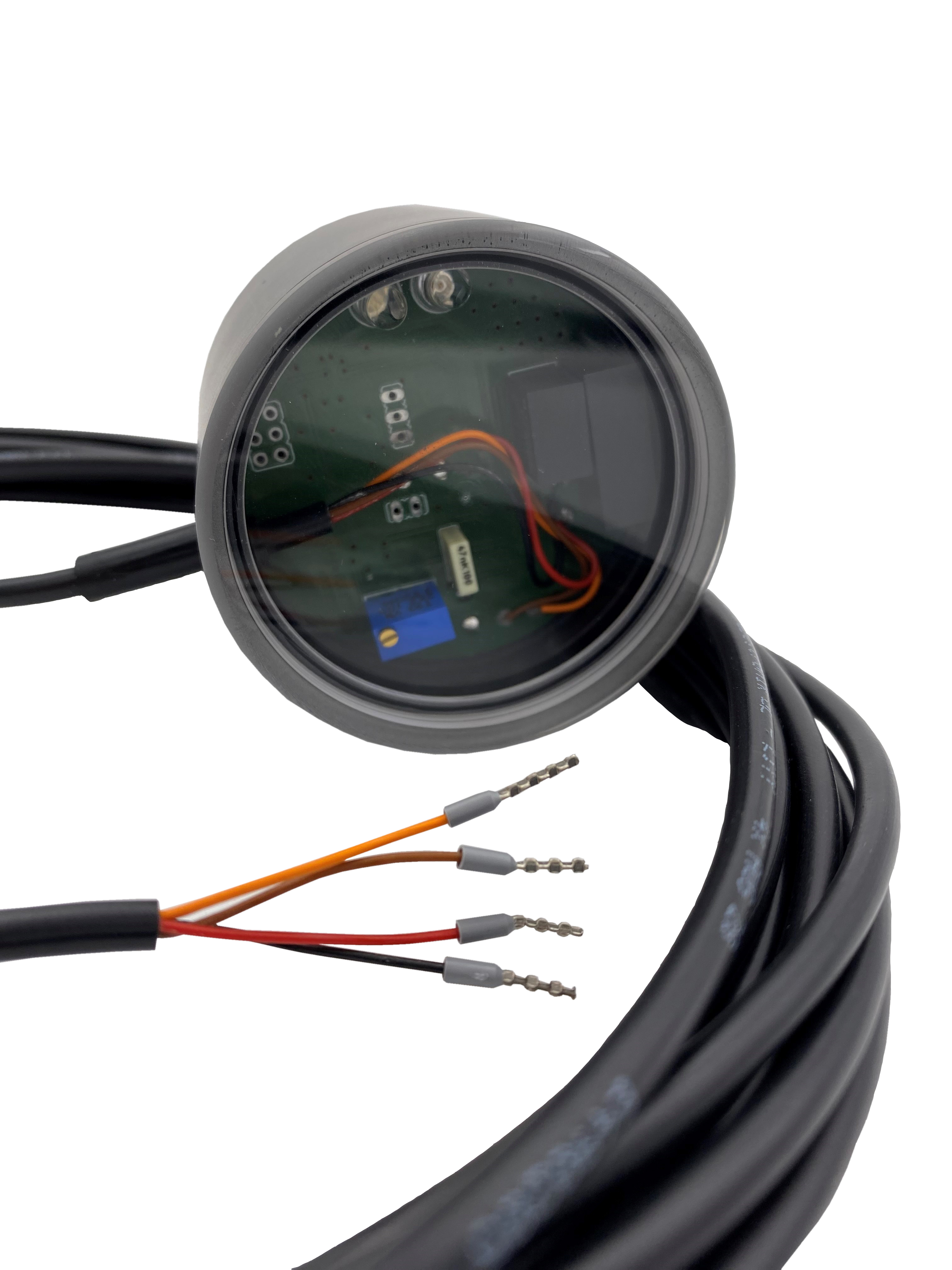

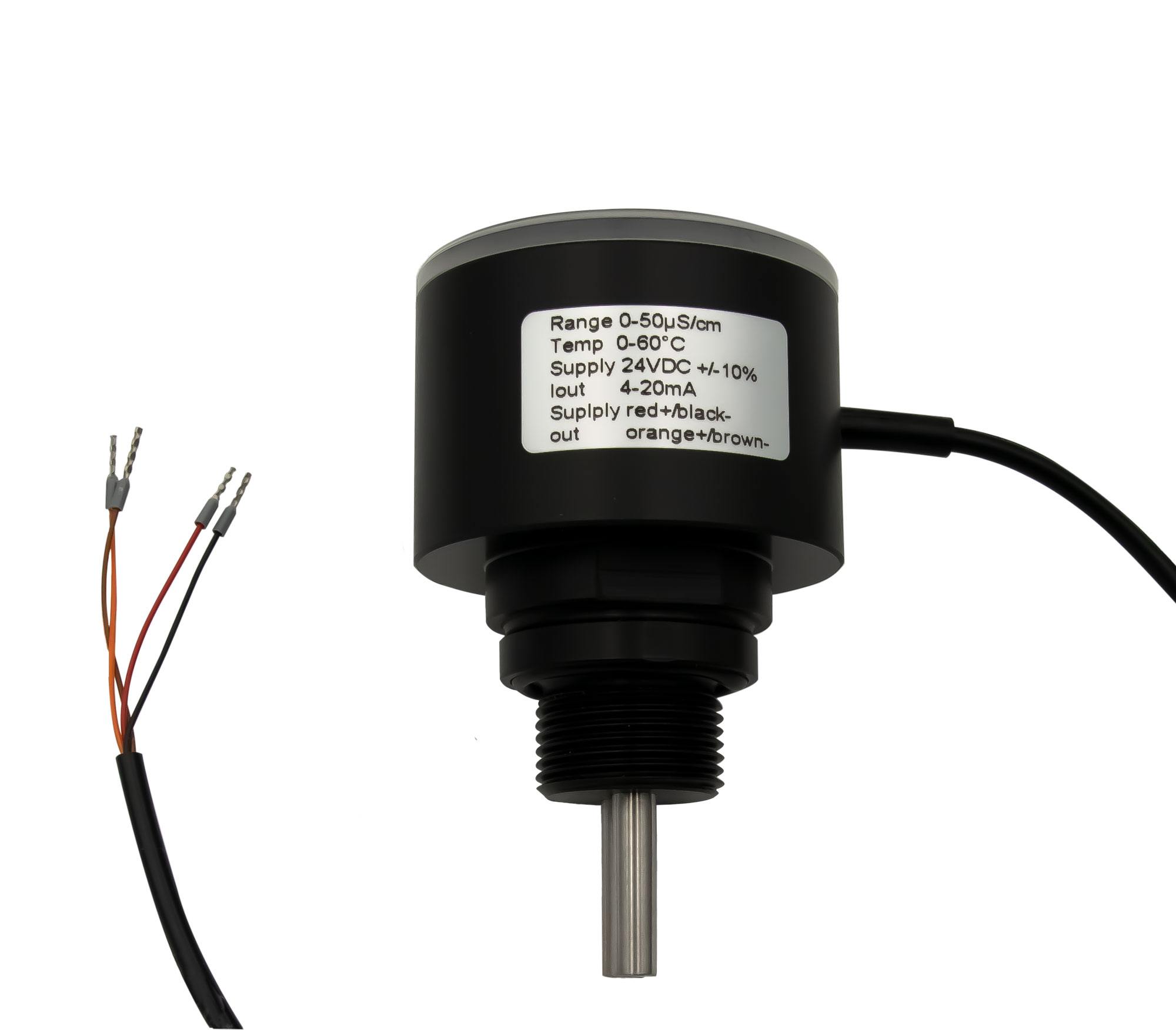

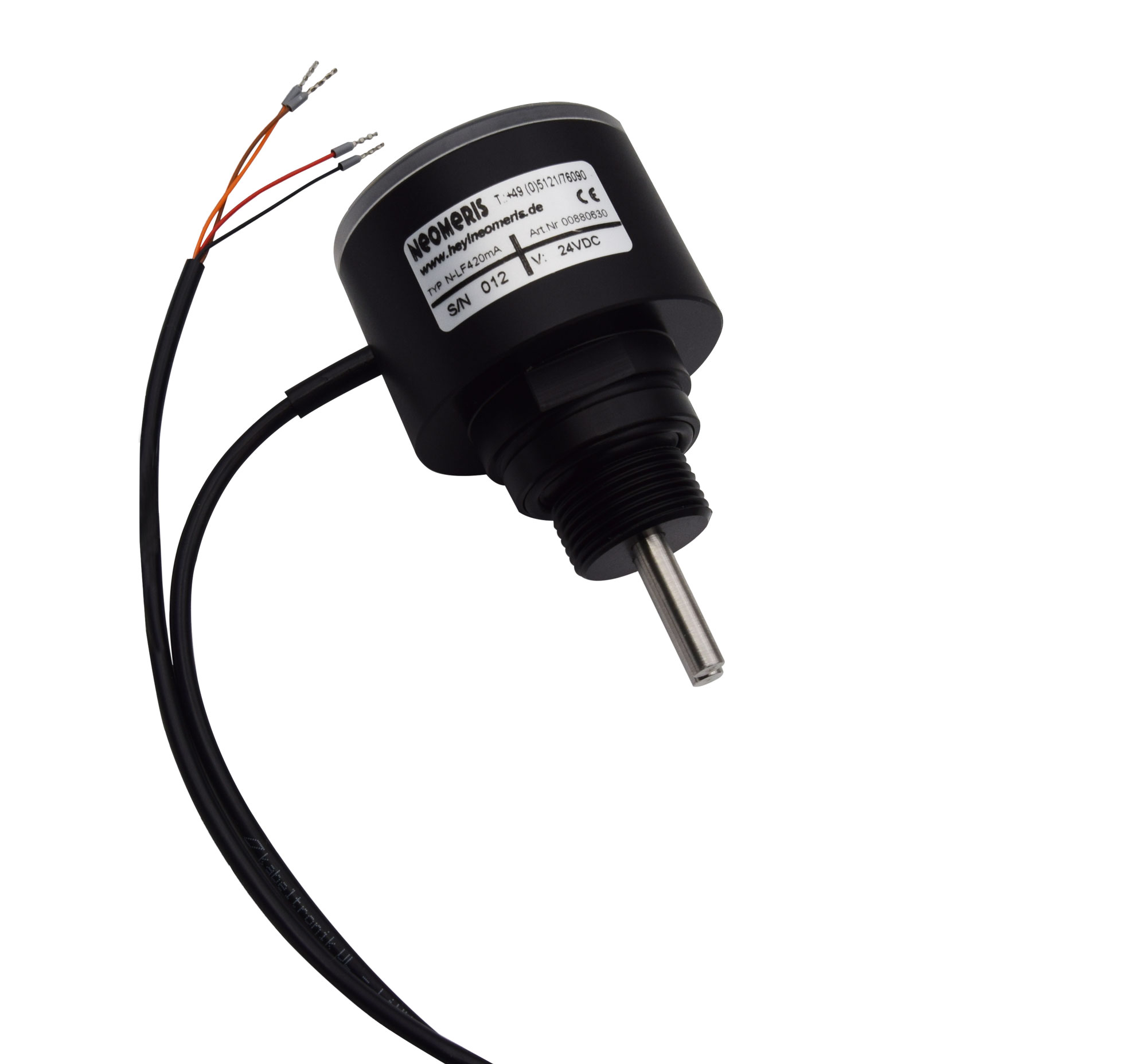

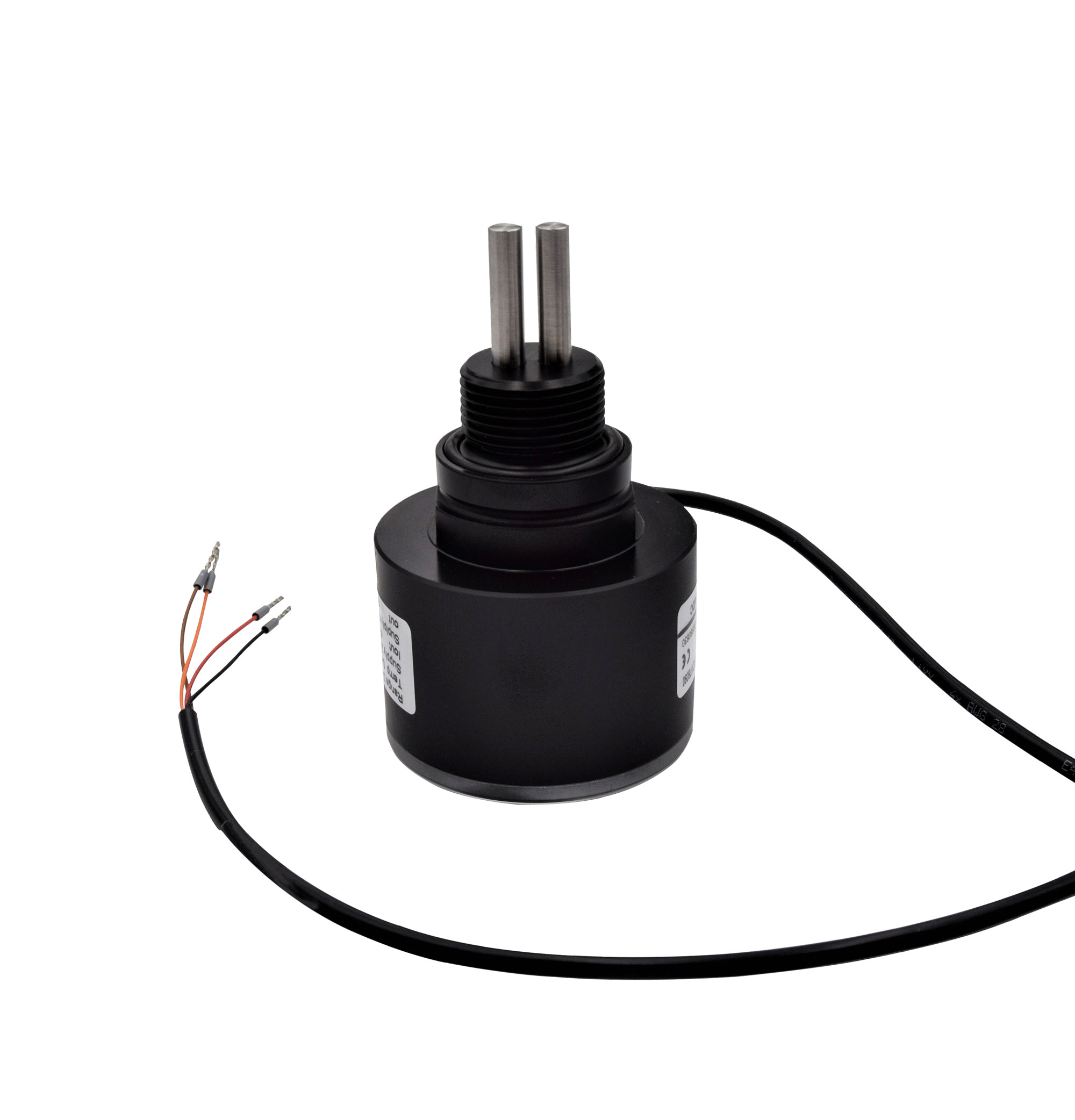

N-LF420 0-2000µS conductivity meter with 4-20mA output, LED display and screw-in thread as required

Product number: 880630M.5

Product information "N-LF420 0-2000µS conductivity meter with 4-20mA output, LED display and screw-in thread as required"

High-quality conductivity meter with a 4-20mA signal output for forwarding the measured value to a higher-level control system, for example. The measurement is temperature compensated and therefore offers you an accurate measurement result. Also here we have the possibility to offer you an individual design regarding the connection, the LEDs including the measuring range up to a private label.

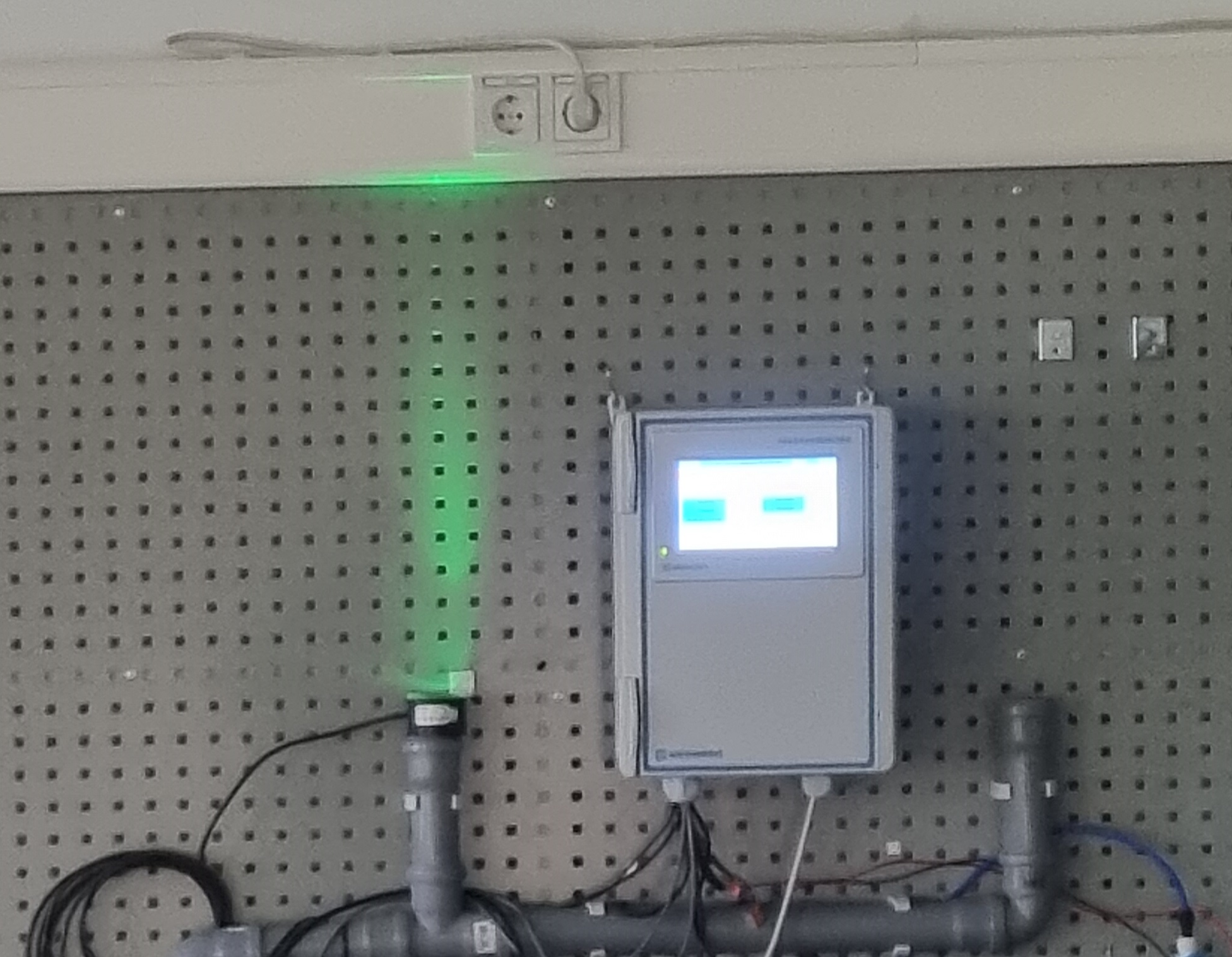

Due to the acrylic glass cover used, the light of the LEDs is widely scattered and the current LED status can be seen from a distance in darker rooms.

Quality Made in Germany.

Standard LED configuration (1 green LED, 1 red LED):

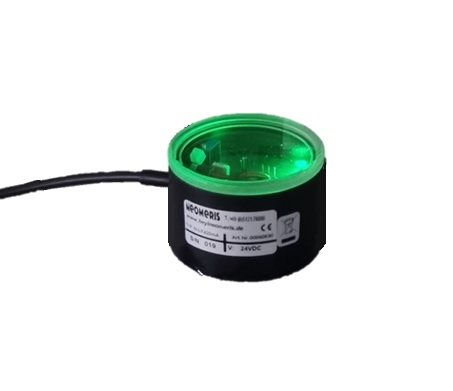

<1500 µS/cm = green
>1500 µS/cm to <1900µS/cm = green/red flashing

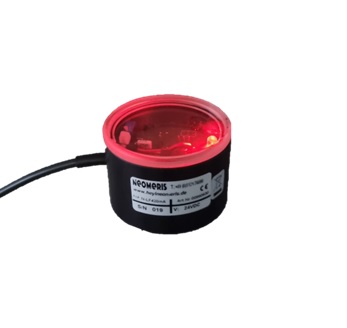

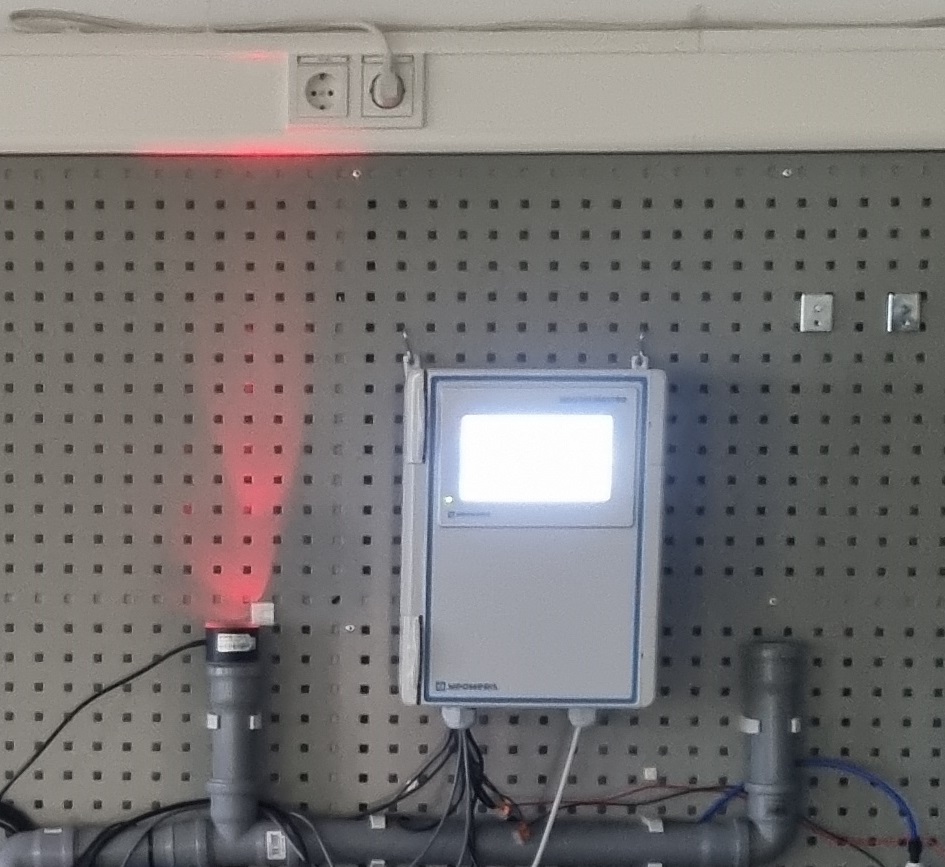

>1900 µS/cm = red
Technical data:
Measuring range: 0 - 2000 μS/cm
Temperature compensation: Linear 2.2 % / K, reference temperature 25°C
Accuracy conductivity: +/-10% of the maximum full scale value
Accuracy temperature: +-1.0 °C
Limit value display: Optical via LED
Analog output: 4-20 mA = 0-2000 μS/cm
Power supply: 24 VDC +-10%
Power consumption: < 2.5W
Screw-in thread: according to your requirements
Housing: POM (polyoxymethylene)

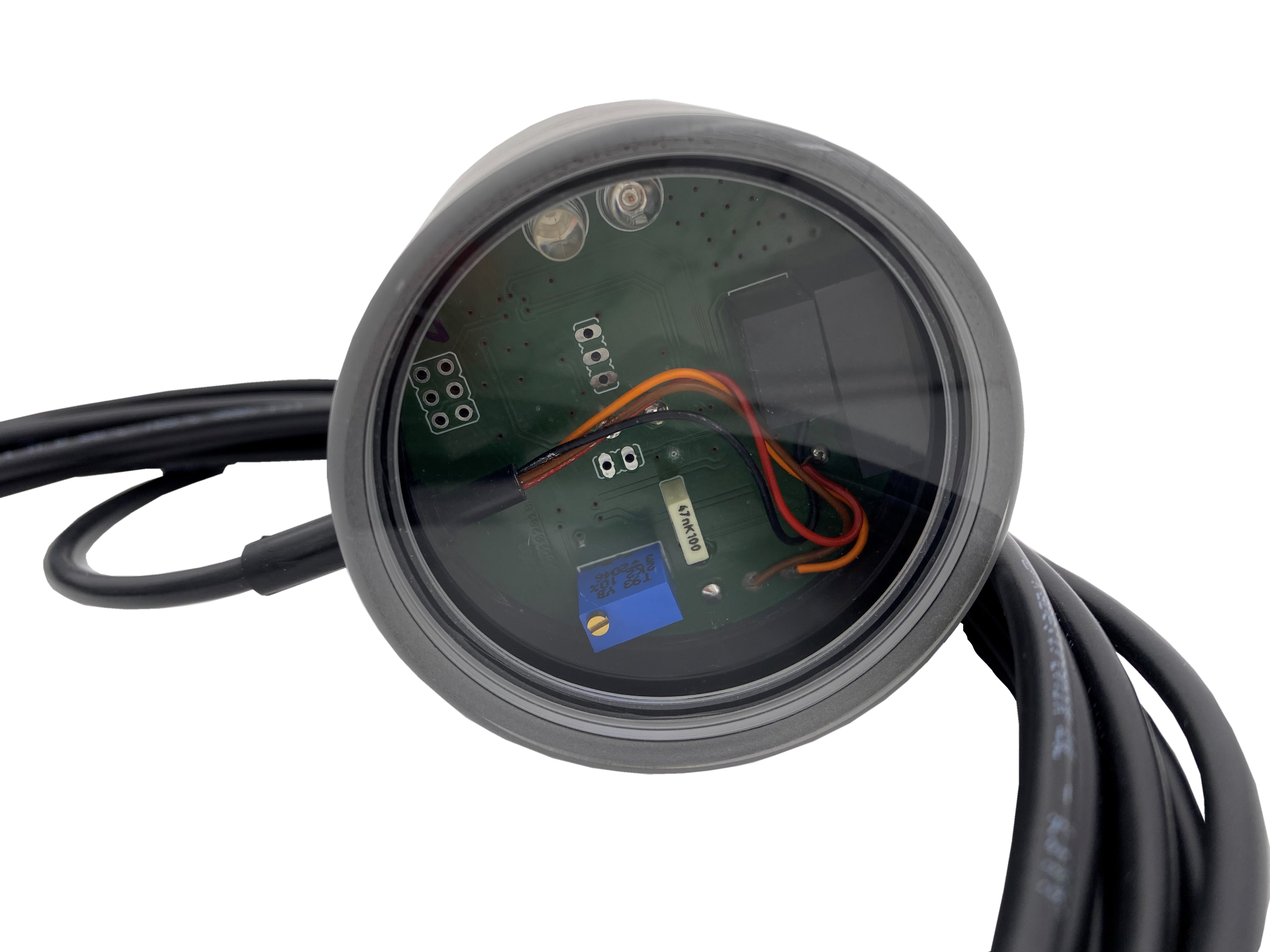

Vision panel: PMMA (acrylic glass)

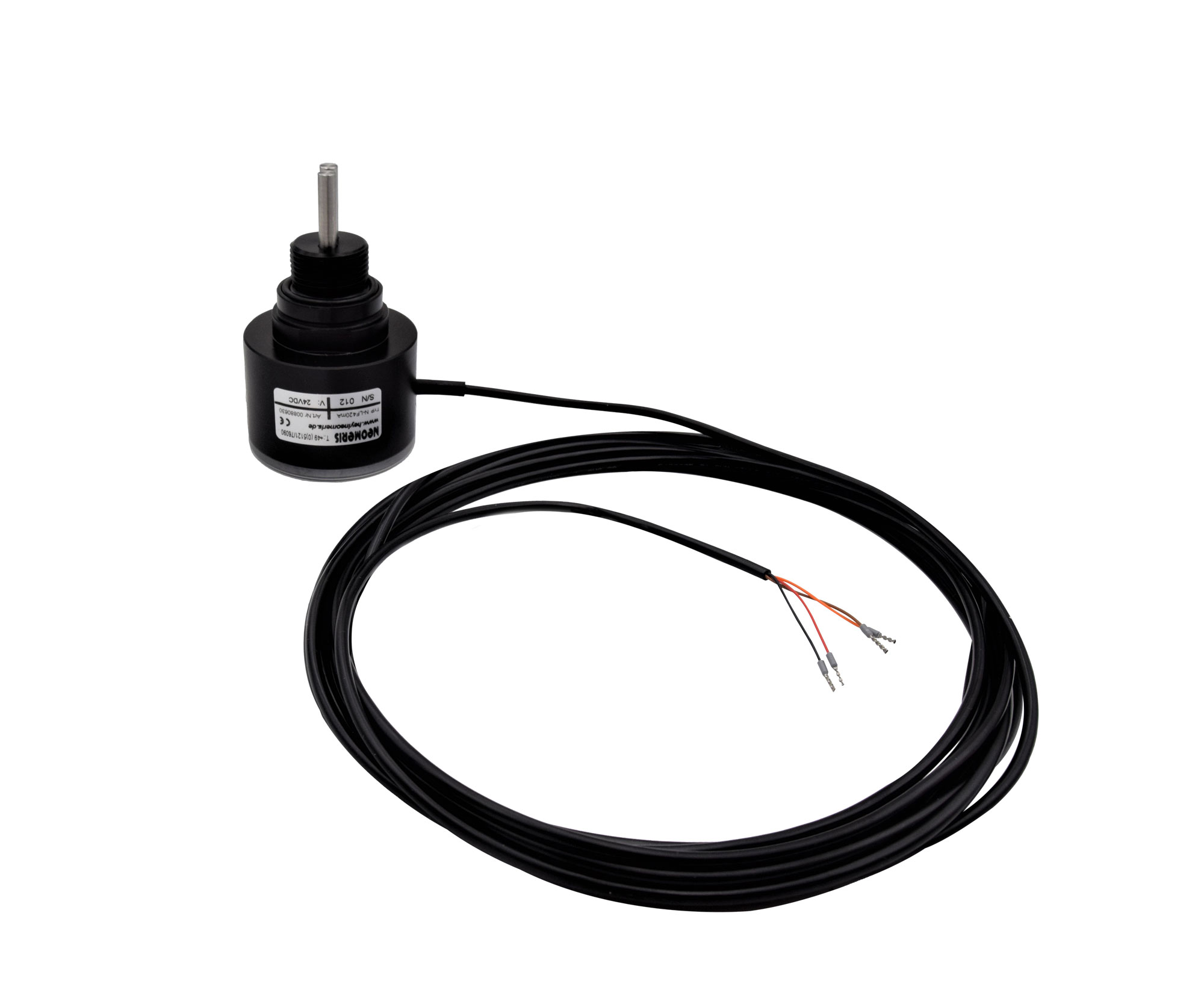

Electrodes: stainless steel 1.457
Dimensions: Diameter 60 mm x 60 mm (top) / 100 mm (total)
Gaskets electrodes: EPDM, 28 x 3 mm
Gasket housing: EPDM, 50 x 2 mm
Application limits: P max: 6 bar; T max: 50 °C
Protection class: IP 65*
