NeoTec signal converter 4-20 mA (conductivity, cell constant c=1.0) in enclosure (wall mounting)
Product number: 800049
€401.75*
Please log in to receive your conditions.
Available in 30 days, delivery time 1-2 days
Product number:
800049
GTIN:
4260682384867
Measuring range:
Measuring range: 0-10.000µS = 4-20mA
Our comment:
Can only be used with conductivity electrodes with Pt1000 and cell constant 1.0
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "NeoTec signal converter 4-20 mA (conductivity, cell constant c=1.0) in enclosure (wall mounting)"
Module for manufacturer-independent integration of pH, ORP and conductivity standard sensors (PT1000 based), which do not have an integrated signal converter on site. Integration of existing/existing sensors into the NeoTecMaster® concept via 4-20 mA signal.
Advantages:
- accommodates all pH, ORP and conductivity standard electrodes
- easy wall installation
- industry standard
- allows the use of existing sensors
Dimensions
| Height | 11 cm |
|---|---|
| Length | 17 cm |
| Width | 16 cm |
Weight
| Weight | 360 g |
|---|
Other attributes
| Country of origin | US |
|---|---|
| Customs tariff number | 90278930 |
Technical data:
- integrated 4-20mA converter module 24VDC
- requires Pt1000 based analog Sensor

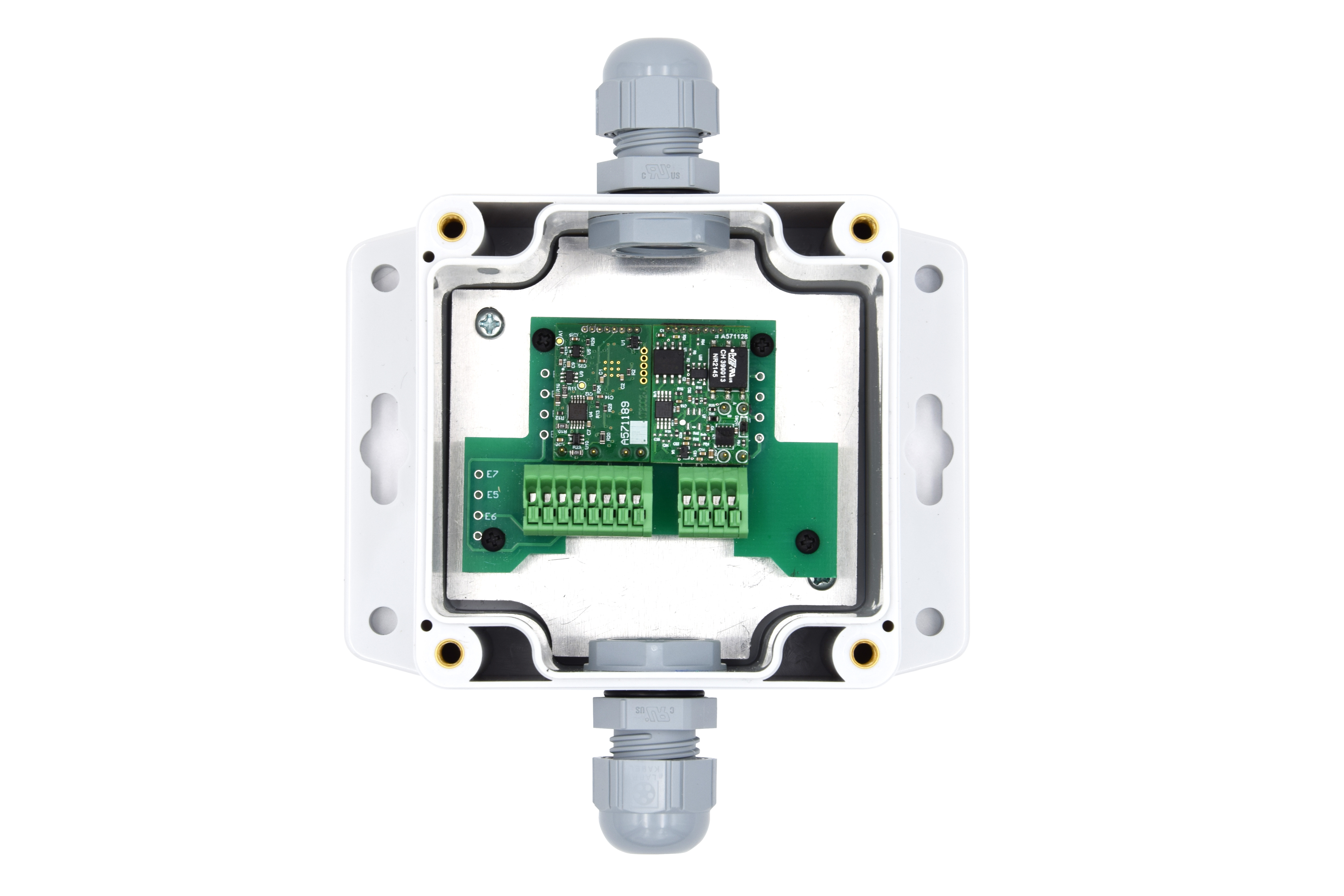

- sensor cable strands connected to module

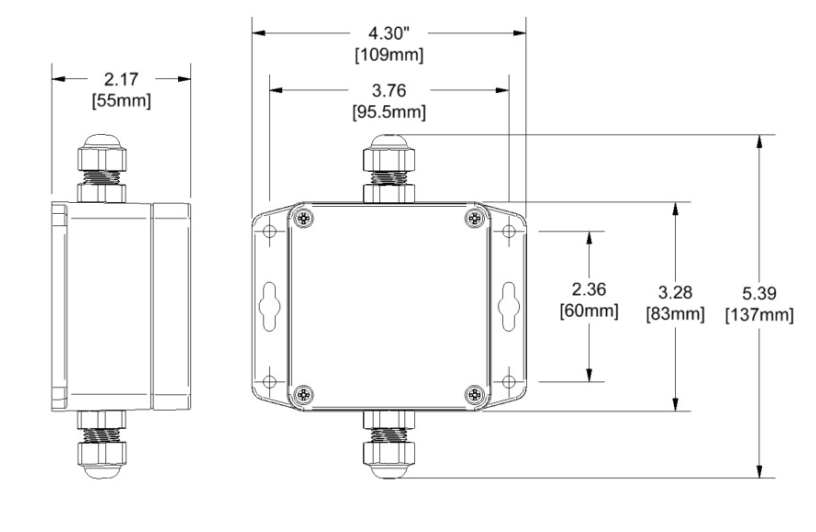

- installation dimensions (W x H x D) 137 x 109 x 55 mm
- DIN rail mounting
