Testomat 2000® CLF
€7,113.90*
Please log in to receive your conditions.
Available in 70 days, delivery time 1-2 days
Register warranty here
A warranty extension is possible after taking out an indicator subscription.
| Testomat 2000® Reagent CL2250A 500 ml | Order · Subscription |
| Testomat 2000® Reagenz CL 2250 B 500 ml | Order · Subscription |
| Testomat 2000® chlorine reagent set F (free chlorine) 2 x 500 ml, 1 x 400 ml | Order · Subscription |
| Testomat 2000® chlorine reagent set F 50% (free chlorine) 1 x 500 ml A , 1 x 200 ml B | Order · Subscription |
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Leasing Example
148,61 €
non-binding
Monthly Rate (60 Rates)
Prices excl. VAT
Further rate options by choosing the payment method Leasing
Alternatives to this product
- Messbereich 0 – 5 mg/l (T2000 hat nur 0 – 2,5 mg/l)
- Integrierte Datenaufzeichnung (Messwerte sowie Fehlermeldungen) auf SD-Karte
- Messfunktion als dauerhaft in festen Zeitintervallen oder Messphase*2 programmierbar
- Grenzwertrelais
- Keine Displayanzeige
- Keine 2 Messstellen
- Kein AUX Relais
- Analyse für freies Chlor oder
- Gesamtchlor (Festlegung durch
- gewählten Reagenzsatz)
- IST-Wert Bestimmung
- 4-20mA Messwertübertragung
- Grenzwertrelais
(nur umsetzbar mittels NeoTecMaster®)
- Displayanzeige für Messwerte
- Schutzhaube für IP 65
- Externe Analysenauslösung (START/STOP-Relais)
- Parametrierung mittels PC-Software
The Testomat® LAB CL is a robust wet chemical online measuring converter to measure the concentration of total chlorine or free chlorine in the measuring range 0 - 5 mg/l. The instrument is suitable for controlling the water quality of water treatment plants, drinking water plants, process water monitoring and for monitoring the chlorine concentration in the cooling tower process. Instrument operation is based on the DPD method according to EN ISO 7393-2. The analysis is carried out through the addition of two reagents and the measurement result is obtained after a reaction time of approx. 60 seconds (pure measurement time without flush time).
In view of the fact that the Testomat® LAB CL was developed for use in multi-parameter systems or for connection to a higher-level control system, we hereby offer you the Testomat® LAB CL in combination with the NeoTecMaster® Multi Channel Controller, which was specially developed by our company, as a package solution at a preferential price.
The 4-channel NeoTecMaster® multi-parameter controller included in this package enables the processing of up to four measurement signals in this version. A signal input, in this case the RS232 interface, is used by the Testomat® LAB CL to display the measured value, the trend and the status messages on the 5 inch screen.
In addition to the on board RS232 interface, the NeoTecMaster® also has a Modbus RTU input, which you can use freely after brief technical consultation with us. (Pre-check whether your existing measurement technology to be integrated requires adjustments).
The NeoTecMaster® can be systematically supplemented with further optional NeoTec modules (function / signal converter modules) as required, thus enabling the future realisation of further control concepts in a flexible manner.
Two modules that fundamentally expand the range of functions and are ...

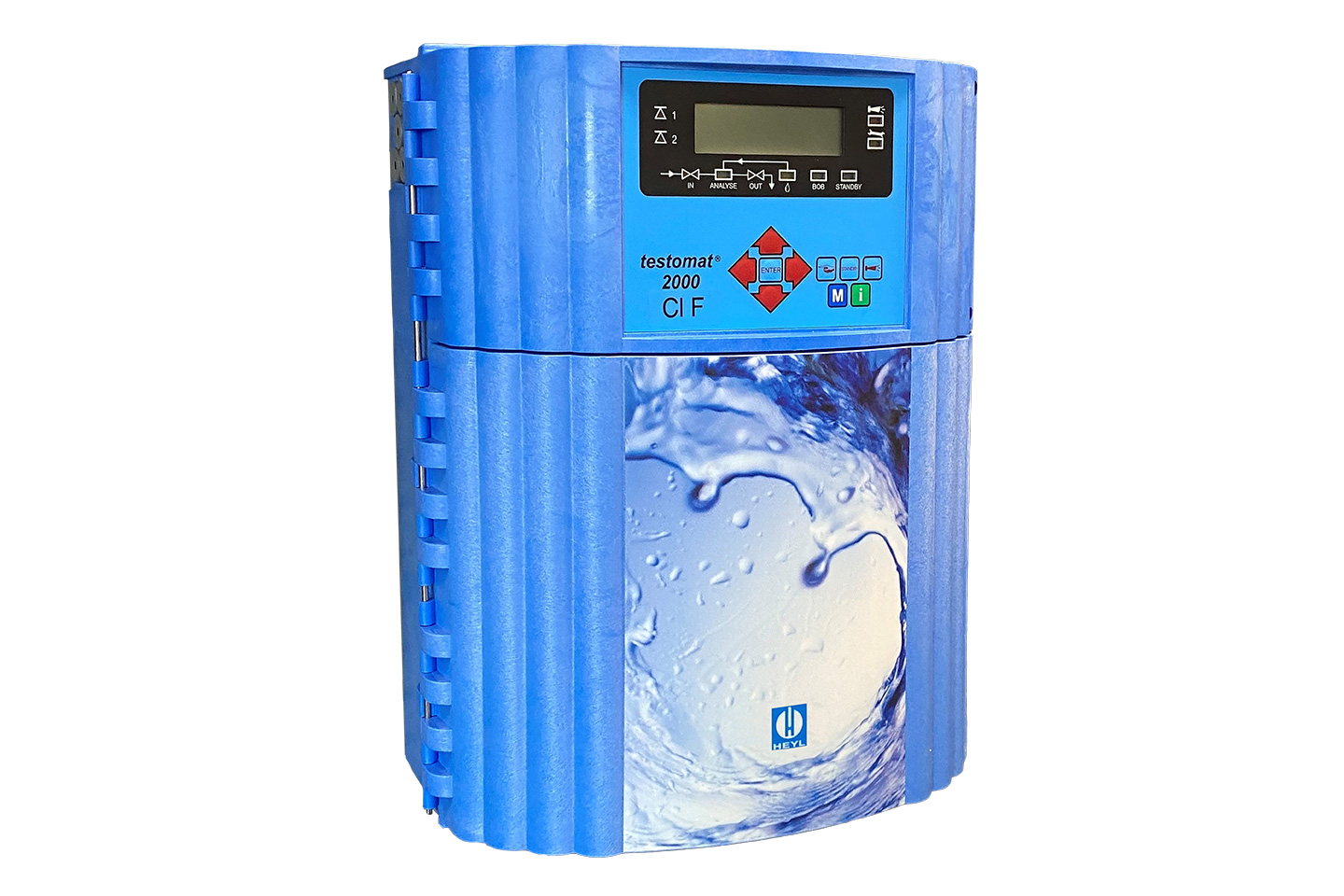

Product information "Testomat 2000® CLF"
- Analysis via automatic dosing of two reagents
- The analysis result is displayed after a reaction time of approx. 1 min. (Measuring time without rinsing time)
- 2 independently programmable limit contacts for monitoring and control tasks
- Menu-driven operation and programming via plain text display
- High-precision titration using a piston dosing pump
- Analysis initiation:
- Automatic interval operation
- (Interval pause adjustable from 0–99 min)
- External control
- Dynamic (fatigue-dependent interval operation)
- Quantity dependent via contact water meter
- Two independent limits with hysteresis (1, 2 oder 3 bad analyzes) and adjustable switching functions
- Monitoring of two measuring points (Switching by external solenoid valves)
- programmable service address
- Internal error documentation
- Programmable maintenance interval for maintenance request
Weight
| Weight | 10,5 kg |
|---|
Other attributes
| Country of origin | DE |
|---|---|
| Customs tariff number | 90278990 |
| Power consumption: | max. 30 VA |
| Protection class: | I |
| Protection: | IP 65 |
| Ambient temperature: | 10–45 °C |
| Water temperature: | 10–40 °C |
| Dimensions (W x H x D): | 380 x 480 x 280 mm |
| Operating pressure: | 0,3–8 bar |
| Weight: | approx. 9,5 kg |
| Menu Language: | German, English, French |
| Measuring range: | Free chlorine: 0.00 – 0.99 mg/l (Resolution: 0.01 mg/l) 1 – 2.5 mg/l (Resolution: 0.1 mg/l)
|
We recommend the following reagents and accessories
