Testomat® LAB TH-R

Product number: 116112

€3,720.30*

Please log in to receive your conditions.

Prices excl. VAT plus shipping costs.

Show gross prices
(incl. VAT)

Available in 30 days, delivery time 1-2 days

Version

TH-R

Product number: 116112

GTIN: 4068823005530

Measurement parameters: Water hardness (residual total hardness)

Measuring range: 0.89 - 448 ppm

Menu navigation: (Servicemonitor) German, English, French, Dutch, Portuguese

Would you like to register the warranty for this product?
Register warranty here
A warranty extension is possible after taking out an indicator subscription.

Order the appropriate original indicator for your TESTOMAT® device:

Testomat® indicator TH 2005, 500ml	Order · Subscription
Testomat® indicator TH 2025 500ml	Order · Subscription
Testomat® indicator TH2050 500ml	Order · Subscription
Testomat® indicator TH 2100 500ml.	Order · Subscription
Testomat® indicator TH 2250 500ml.	Order · Subscription

Determine the appropriate reagent here: Reagent consumption calculator

Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.

Leasing Example

78,31 € non-binding
Monthly Rate (60 Rates)
Prices excl. VAT

Further rate options by choosing the payment method Leasing

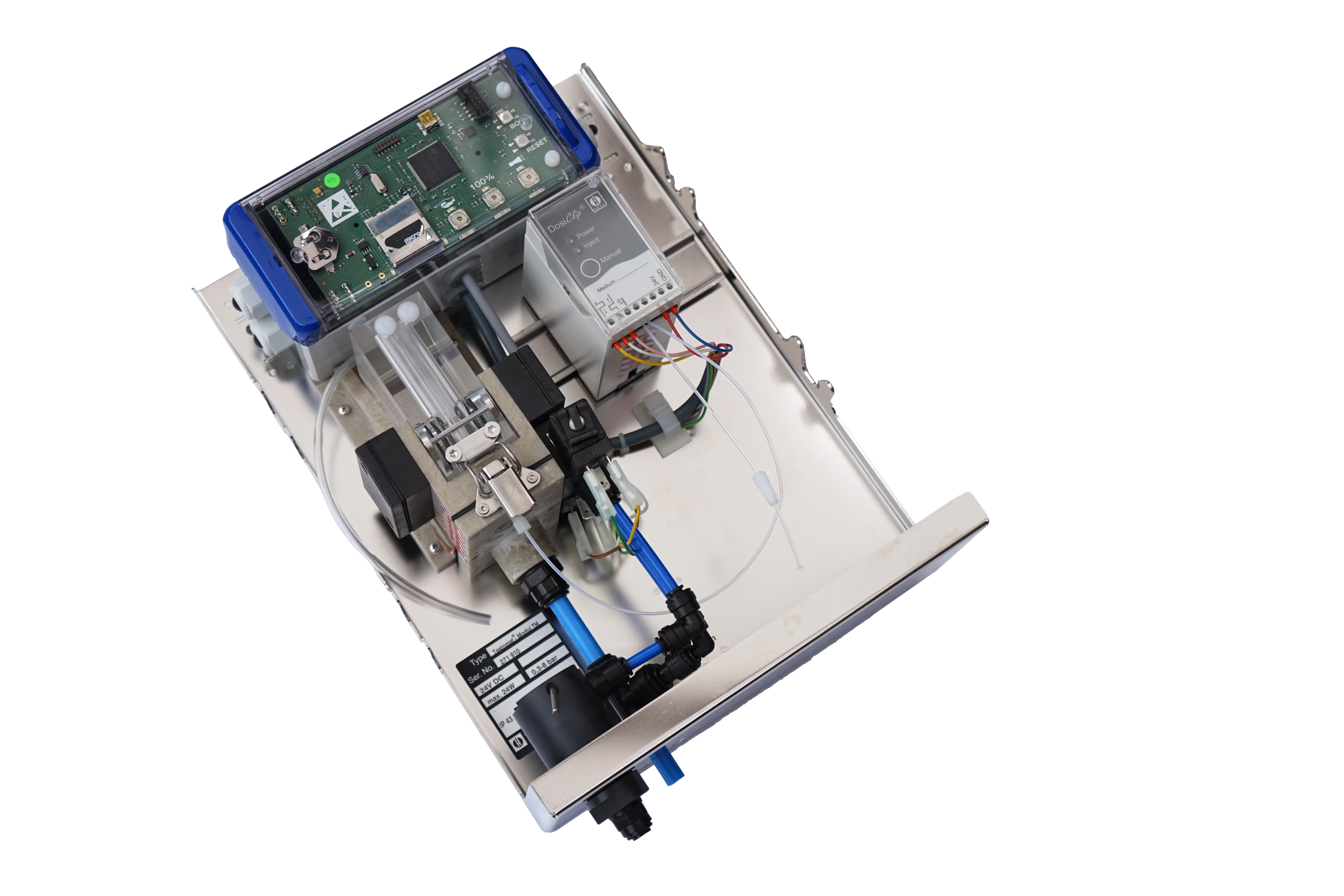

Product information "Testomat® LAB TH-R"

The Testomat® LAB TH and Testomat® LAB TH-R (Remote)determine the water hardness (residual total hardness) fully automatically by titration. The instrument is suitable for controlling the water quality of water treatment plants, drinking water plants, industrial boilers and for monitoring process water.

Please note that Testomat® LAB - TH and Testomat® LAB TH-R was developed for use in multi-parameter systems or for connection to a higher-level control system.

In addition to the 4-20 mA output for transmitting the measured values, this series has an RS232 interface for transmitting the measured values and error & status messages. Furthermore, all data are continuously recorded on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format structured and can be used at any time for detailed observations.

The Testomat® LAB TH and TH-R convinces with new functionalities:

Execution of parameterization by SD card or the "Service Monitor" software via mini-USB (on the device side) to USB 2.0 (for example PC/notebook)
Multilingual menu navigation software in German, English, French, Dutch, Portuguese
Firmware update via SD card
compact design
optimized water detection based on an optical measuring method
Integrated self-test with continuous monitoring
Automatic venting of the indicator line

Additional functions of the TH-R version:

Parameterisation and readout of the unit parameters via the RS232 interface

Tried and tested performance profile:

High-precision titration using a piston dosing pump
Reliable and low-maintenance operation
Minimal indicator and water consumption
Analog output 4 - 20 mA for transmission of measured values
Programmable hardness unit in °dH, °f, ppm CaCO3, mmol/l
Common alarm output
Indicator quantities: 500 ml bottles

Analysis triggering:

Automatic interval operation (interval pause adjustable from 0-255 minutes)
External analysis input (start/stop)
Hand launch

Optional accessories:

OLED display
Protecting cover to increase the IP protection class

Dimensions

Height	21 cm
Length	43 cm
Width	35 cm

Weight

Weight	4,55 kg

Other attributes

Country of origin	EU
Customs tariff number	90278990

Technical specifications

Operating voltage:	24 VDC
Power consumption:	Max. 1 A, without external load
Protection class:	I
Protection:	IP 40 (when using the optionally available device cover, IP43)
Ambient temperature:	10–40 °C
Water temperature:	10–40 °C
Dimensions (W x H x D):	270 x 350 x 147 mm
Operating pressure:	1 to 8 bar / 1x105 to 8x105 Pa or 0.3* to 1 bar / 1x105 to 1x105 Pa (*after removing the regulator core)
Weight:	approx. 4.35 kg
Menu Language:	(Servicemonitor) German, English, French, Dutch
Measuring range:	0.89 - 448 ppm

We recommend the following accessories

Testomat® LAB OLED display module for measured value visualization

Product number: 37764

256x64 2,8", yellowFeatures: When the device is switched on with the display plugged in, the installed software version is displayed during the boot process. This allows you to visually check the current software version after a software update. After a measurement has been completed, the measurement result is shown in the selected display unit. The display value is retained until the end of the next measurement and is then updated to the new measured value. If a fault occurs during the last measurement, the display shows “xx x x x selected display unit”. If it is a temporary fault, the Alarm function key flashes at the same time (see Temporary faults in the manual). In this case, the device will start a new measurement once the programmed analysis interval has expired. If the error is still present, the indication on the display remains and the Alarm function key remains illuminated. In this case, no further measurements are made during programmed analysis interval and the device switches to standby mode. If the fault is no longer present, the measurement result is shown on the display once the measurement has been completed and the device switches back to normal operating mode.

€560.10*

Details

Connection Set for Testomat 2000® / ECO / EVO / LAB

Product number: 40187

In diesem Anschluss-Set ist alles enthalten, was Sie für den schnellen Anschluss des Testomat 2000®- oder Titromat®-Gerätes benötigen. Inhalt: 5 m Kunststoffrohr PE 6/4x1,blau 2 m Ablaufschlauch di = 12 mm 1 Kugelhahn, PPSV 011223W 1 Reduzier-Verbinder 10 auf 6 mm 1 Reduziernippel 3/8"-1/2"

€134.60*

Details

Instrument cover for Testomat® LAB instruments

Product number: 37798

Recommended for Testomat® LAB instruments which are exposed to sunlight.

€536.10*

Details

Testomat® indicator TH 2100 500ml.

Product number: 152100

500 ml bottle original Testomat® indicator TH 2100 for limit value: 1,00-10,00°dH for measuring residual hardness. °dH (resolution): 1,00-10,00 (0,20) °f (resolution): 1,79-17,9 (0,40) ppm CaCO3 (resolution): 17,9-179 (3,8) mmol/l (resolution): 0,18 -1,79 (0,04)

€102.20*

Details

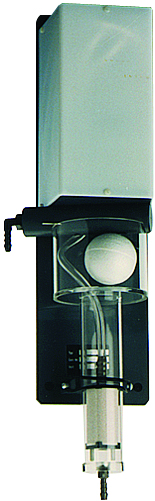

Testomat® Aerator R

Product number: 130009

Performance/execution: 24 V/50-60 HZ

Testomat® aerator for reducing the CO2 content. Capacity: Max. water throughput of 12 l/h when reducing the free carbon dioxide from max. 200 mg/l to below 20 mg/l. A high carbon dioxide content in the sample water distorts the measurement results. Therefore, insert the small aerator R upstream of the Testomat® device to reduce the CO2 content in the sample water. Dimensions (W x H x D): 150 x 500 x 100 mm Supply voltage: 230 V/50 Hz. Attention: The mounting of the Aerator R has to be 3 meters over the device!

Price on request

Details

Testomat® indicator TH 2025 500ml

Product number: 152025

500 ml bottle original Testomat® indicator TH for limit value: 0,25- 2,50°dH for measuring residual hardness. °dH (resolution): 0,25- 2,50 (0,05) °f (resolution): 0,45-4,48 (0,10) ppm CaCO3 (resolution): 4,48-44,8 (0,9) mmol/l (resolution): 0,04-0,45 (0,01)

€102.20*

Details

Testomat® indicator TH 2250 500ml.

Product number: 152250

500 ml bottle original Testomat® indicator TH 2250 for limit value: 2,50-25,00°dH for measuring residual hardness. °dH (resolution): 2,50-25,00 (0,50) °f (resolution): 4,48-44,8 (0,40) ppm CaCO3 (resolution): 44,8-448 (3,8) mmol/l (resolution): 0,45 -4,48 (0,04)

€102.20*

Details

Testomat® indicator TH 2005, 500ml

Product number: 152005

500 ml bottle original Testomat® indicator TH 2005 for limit value: 0,05- 0,50°dH for measuring residual hardness. °dH (resolution): 0,05- 0,50 (0,01) °f (resolution): 0,09-0,89 (0,02) ppm CaCO3 (resolution): 0,89-8,93 (0,2) mmol/l (resolution): 0,01-0,09 (0,01)

€102.20*

Details

MEPUClip® booster pump

Product number: 270410

Booster pump for Testomat 2000®/ Testomat® EVO TH/Testomat® LAB/Titromat®. The pump installation is absolutely necessary for water input pressure below 0.3 bar.

€1,108.00*

Details

Service set Testomat® LAB TH

Product number: 270357

There is a separate service set especially for Testomat® LAB TH, which contains important spare parts. The service set includes the following spare parts: 1 T2000 gasket kit 2 sight glasses 30x3 1 flow regulator core 3 measuring chamber plugs 1 filter screen for intake 5 different pipes 1 cleaning brush set 2 x screw cap with insert for 500 ml bottle

€425.70*

Details
