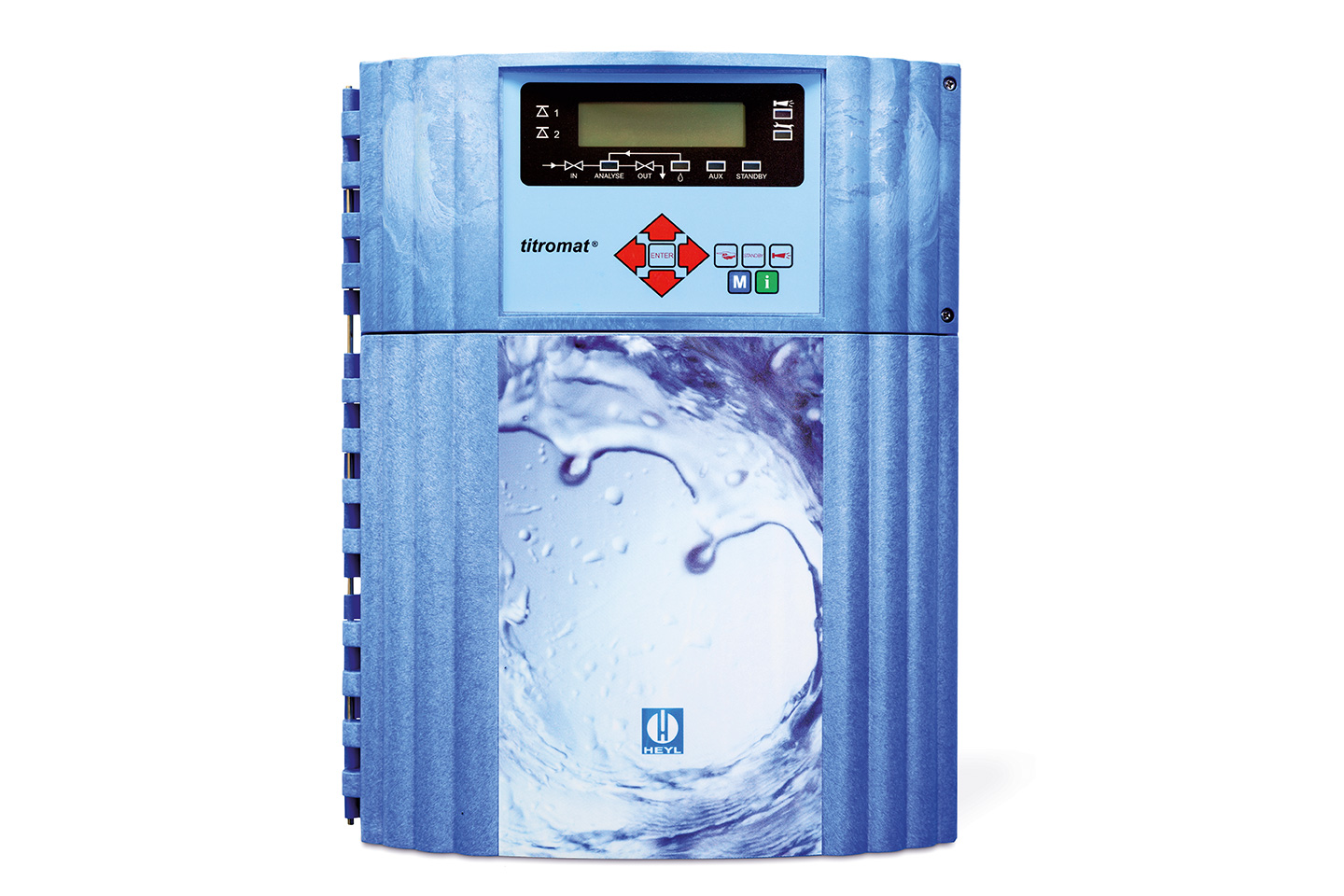

Titromat® M2

Product number: 110137

Product information "Titromat® M2"

The Titromat® M2 is used for the automatic determination and monitoring of carbonate hardness at low hardness measuring ranges.

Titromat® KH, M1, M2 and TH are based on the instrument technology,the performance features and the basic technical data of Testomat 2000®.
Applications:
  • Corrosion monitoring in boiler feed water
  • Residual alkalinity after decarbonization (e. g. in breweries)

Weight

Weight 10,75 kg

Other attributes

Country of origin DE
Customs tariff number 90278990
Technical specifications
Power consumption: max. 30 VA
Protection class: I
Protection: IP 65
Dimensions (W x H x D):     380 x 480 x 280 mm
Operating pressure: 1 bis 8 bar / 1x105 bis 8x105 Pa or 0,3* bis 1 bar / 0,3x105 bis 1x105 Pa
Weight: approx. 9,5 kg
Menu Language: German, English, French
Measuring range:0.89 – 35.8 ppm CaC03 (resolution: 0.89 ppm CaC03) 0.09 – 3.6 °f (resolution: 0.09 °f)

We recommend our reagents, as well as the following accessories

Titromat® TC 2020 Reagent A 500 ml
Product number: 155170
The 500 ml-bottles of original Titromat® TC 2020 Reagent A can be used immediately in the Titromat M2 without cumbersome filling and refilling. Measuring range: Carbonate hardness: 0.89 - 35.8 ppm CaC03 (resolution: 0.89 ppm CaC03) 0.09 - 3.6 °f (resolution: 0.09 °f)

€343.50*
Titromat® TC 2020 Reagent B
Product number: 155171
The 500 ml-bottles of original Titromat® TC 2020 Reagent B can be used immediately in the Titromat M2 without cumbersome filling and refilling.   Measuring range: Carbonate hardness: 0.89 - 35.8 ppm CaC03 (resolution: 0.89 ppm CaC03) 0.09 - 3.6 °f (resolution: 0.09 °f)

€343.50*
Connection Set for Testomat 2000® / ECO / EVO / LAB
Product number: 40187
In diesem Anschluss-Set ist alles enthalten, was Sie für den schnellen Anschluss des Testomat 2000®- oder Titromat®-Gerätes benötigen.   Inhalt: 5 m Kunststoffrohr PE 6/4x1,blau 2 m Ablaufschlauch di = 12 mm 1 Kugelhahn, PPSV 011223W 1 Reduzier-Verbinder 10 auf 6 mm 1 Reduziernippel 3/8"-1/2"

€134.60*
outlet hopper cpl. T2000/ECO
Product number: 40315

€92.60*
Current Interface SK 910
Product number: 270305
Plug-in card for a current interface, suitable for Testomat 2000® and Titromat® instruments.   Technical Data output current: 0-20mA or 4-20mA maximum load: 500 Ohm galvanic isolation   Usable in following devices: Testomat 2000®, Testomat 2000® CAL, Testomat 2000® CLF, Testomat 2000® CLT, Testomat 2000® CrVI, Testomat 2000® DUO, Testomat 2000® Fe, Testomat 2000® SO3,  Testomat 2000® Self clean, Testomat 2000 THCL®, Testomat 2000® CLO2, Testomat 2000® Br2

€257.10*
Service Set Testomat 2000®, Testomat ECO®, Titromat®, Testomat® EVO TH
Product number: 270360
This service kit contains all the spare parts for the regular maintenance of Testomat 2000®, Testomat ECO®, Titromat® or Testomat® EVO TH instruments.   Content: 1 T2000 gasket kit 2 30x3 sight glass 1 flow regulator cores 3 stoppers for measuring chamber 1 valve kit for injection pump 1 filter screen for intake 19.5 d x 25 3 different pipes 1 cleaning brush set

€170.80*
Service Set Testomat 2000®/Testoma®t ECO/Titromat®/Testomat® EVO TH
Product number: 270352
Service Set Testomat® Testomat® EVO TH / Testomat ECO®/Titromat®   Content: 1 x gasket kit T2000 2 x sight glass windows 30x3 1 x flow regulator core, complete 3 x cylindrical protection plug with shoulder 5.3dx5 PE 1 x set of valves for the injection pump 1 x filter screen for feed 19.5dx25 3 x different pipes 3 x cleaning brush

€235.00*
Service-Kit controller/filter receiver
Product number: 891307
Content: 1 x 40121 inlet connector1 x 40122 outlet connector,PVC1 x 11225 Flow regulator core (1-8 bar)2 x 11216 O-Ring 20x2 (NBR) 1 x 11217 filter strainer for feed 19,5dx251 x 33777 flat gasket 24x2 EPDM 601 x 40153 screw connector G1/4"-61 x 40129 controller plug T2000,cpl.

€177.30*
Service-kit DosiClip
Product number: 891305
Content: 1 x #40011 suction hose, cpl.1 x #40016 pressure hose, cpl.1 x #40040 valve set for jet pump

€239.90*
Service kit for measuring chamber holder + measuring chamber
Product number: 891304
Content: 2 x 40170 sight glass 30x33 x 33777 flat gasket 24x2 EPDM 602 x 33776 O-Ring 18x2 EPDM3 x 11210 Protection plug to measuring chamber T2000 / ECO / EVO TH / EVO TH CAL1 x 40050 Magnetic stirring core

€102.20*
