In this adapter set are all parts included, that you need to install a Testomat® 808.
Connection set consisting of:
plastic hose 6/4 x 1.5 m length
reduction 10 t0 6 mm
shutoff 3/8" to 6 mm
In diesem Anschluss-Set ist alles enthalten, was Sie für den schnellen Anschluss des Testomat 2000®- oder Titromat®-Gerätes benötigen.
Inhalt:
5 m Kunststoffrohr PE 6/4x1,blau
2 m Ablaufschlauch di = 12 mm
1 Kugelhahn, PPSV 011223W
1 Reduzier-Verbinder 10 auf 6 mm
1 Reduziernippel 3/8"-1/2"

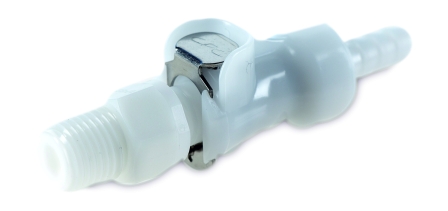

Umrüstsatz für den Wasserzulauf zum Anschluss eines Gewebeschlauches, geeignet für Testomat 2000®-, Testomat ECO®- und Titromat®-Geräte.
Inhalt:
Schnellverschlussstecker 1/4"
Schnellverschlusskupplung 1/4" auf Schlauch di=6 mm
Verriegelung auf der Schlauchseite

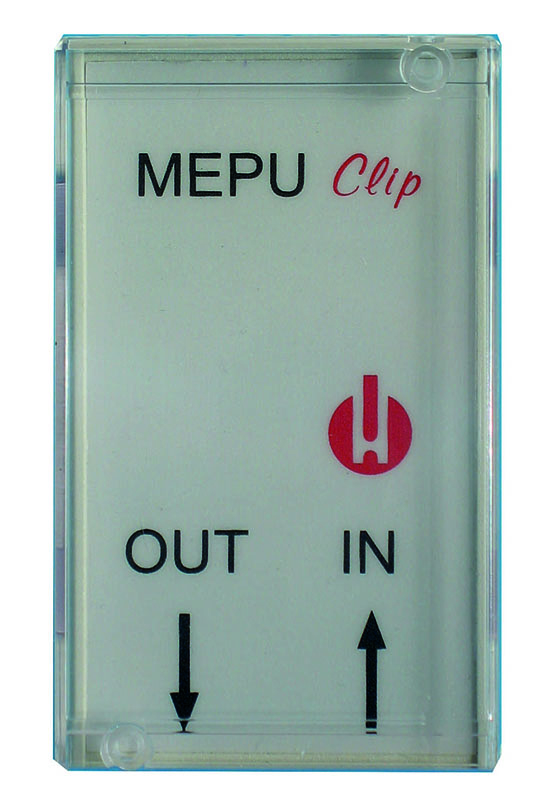

Booster pump for Testomat 2000®/ Testomat® EVO TH/Testomat® LAB/Titromat®.
The pump installation is absolutely necessary for water input pressure below 0.3 bar.
The pressure regulator is suitable for all Testomat® devices. It is used for pressures from 0.5 to 10 bar in order to avoid any pressure fluctuations that may occur and to ensure an optimum operating pressure.
Kit consisting of:
Pressure gauge, rear connection
Bracket with nut
2 x straight screw-in fittings 1/4 ‘ x 6 mm
Technical data:
max. inlet pressure: 25 bar
Ambient temperature: 0-50 °C
Pressure gauge connection G 1/4
Weight: 200 g
City water: approved
Soft water: approved
Demineralised water: not approved
Condensate: not authorised
Dear customers, please note that the calibration of the Testomat® 808 SiO2 can only be carried out with silicate-free water. Therefore, please use the silicate filter cartridge specially developed for this purpose when replacing the double pump head (art. no. 40395) and the associated pump adjustment.The cartridge filled with the special resin is inserted into the sampling line of the unit before the inlet and removed again after the adjustment. The pump replacement instructions describe the use of the silicate filter, storage conditions and shelf life. After the first use, the filter can be used up to 10 times within one year for balancing. After one year, the filter must be disposed of.

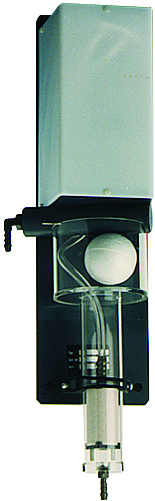

Testomat® aerator for reducing the CO2 content.
Capacity: Max. water throughput of 12 l/h when reducing the free carbon dioxide from max. 200 mg/l to below 20 mg/l.
A high carbon dioxide content in the sample water distorts the measurement results. Therefore, insert the small aerator R upstream of the Testomat® device to reduce the CO2 content in the sample water.
Dimensions (W x H x D): 150 x 500 x 100 mm
Supply voltage: 230 V/50 Hz.
Attention: The mounting of the Aerator R has to be 3 meters over the device!

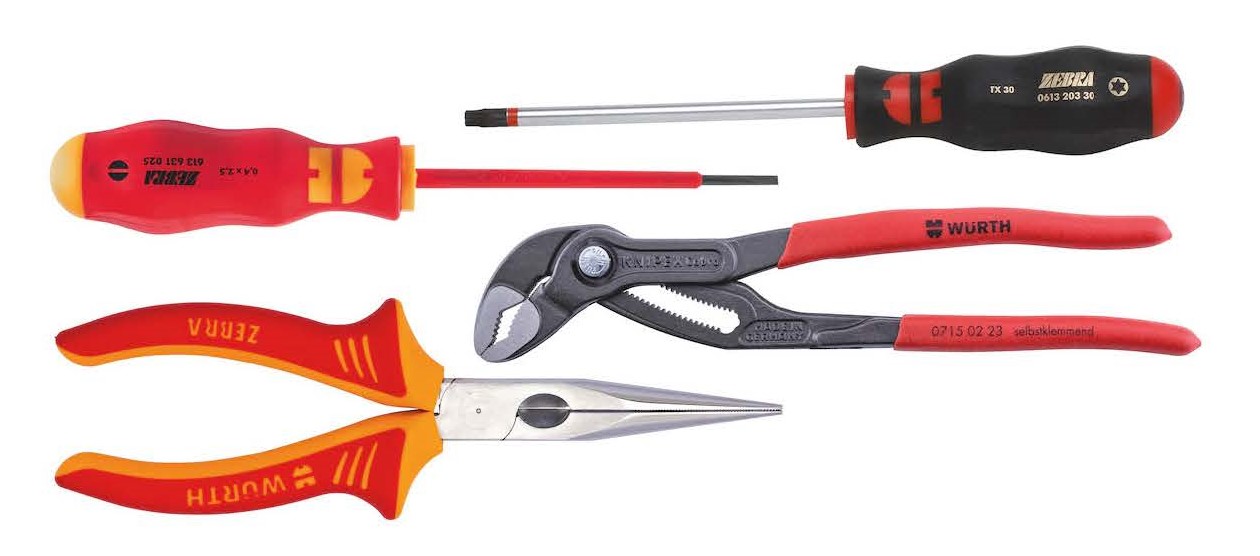

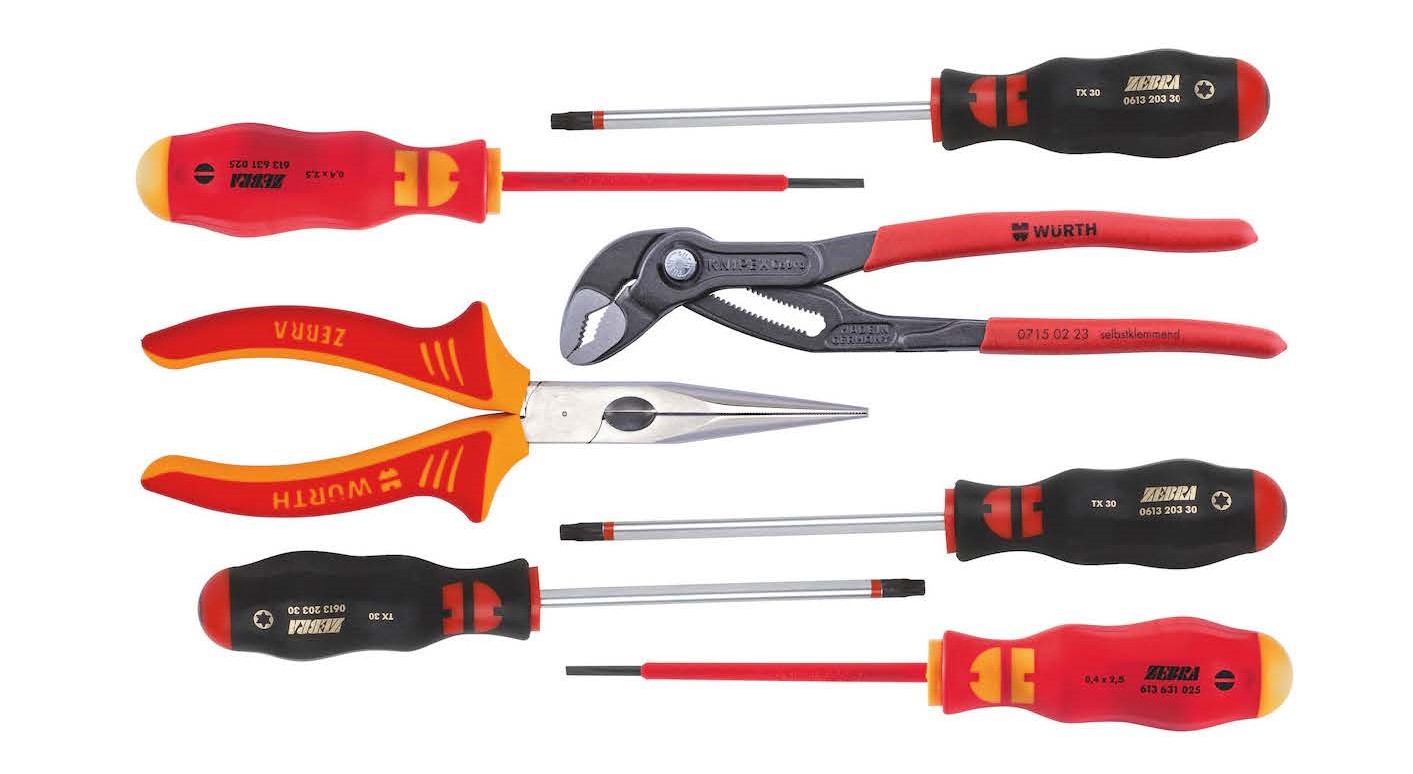

Contents: 1 x Screwdriver Torx 10x80-3K1 x screwdriver VDE slot 0,5x3x1001 x water pump pliers, infinitely variable1 x flat round nose pliers VDE L200MM1 x screwdriver Torx 8x60-3K1 x screwdriver Torx 9x60-3K1 x screwdriver VDE slot 0,5x3x100
