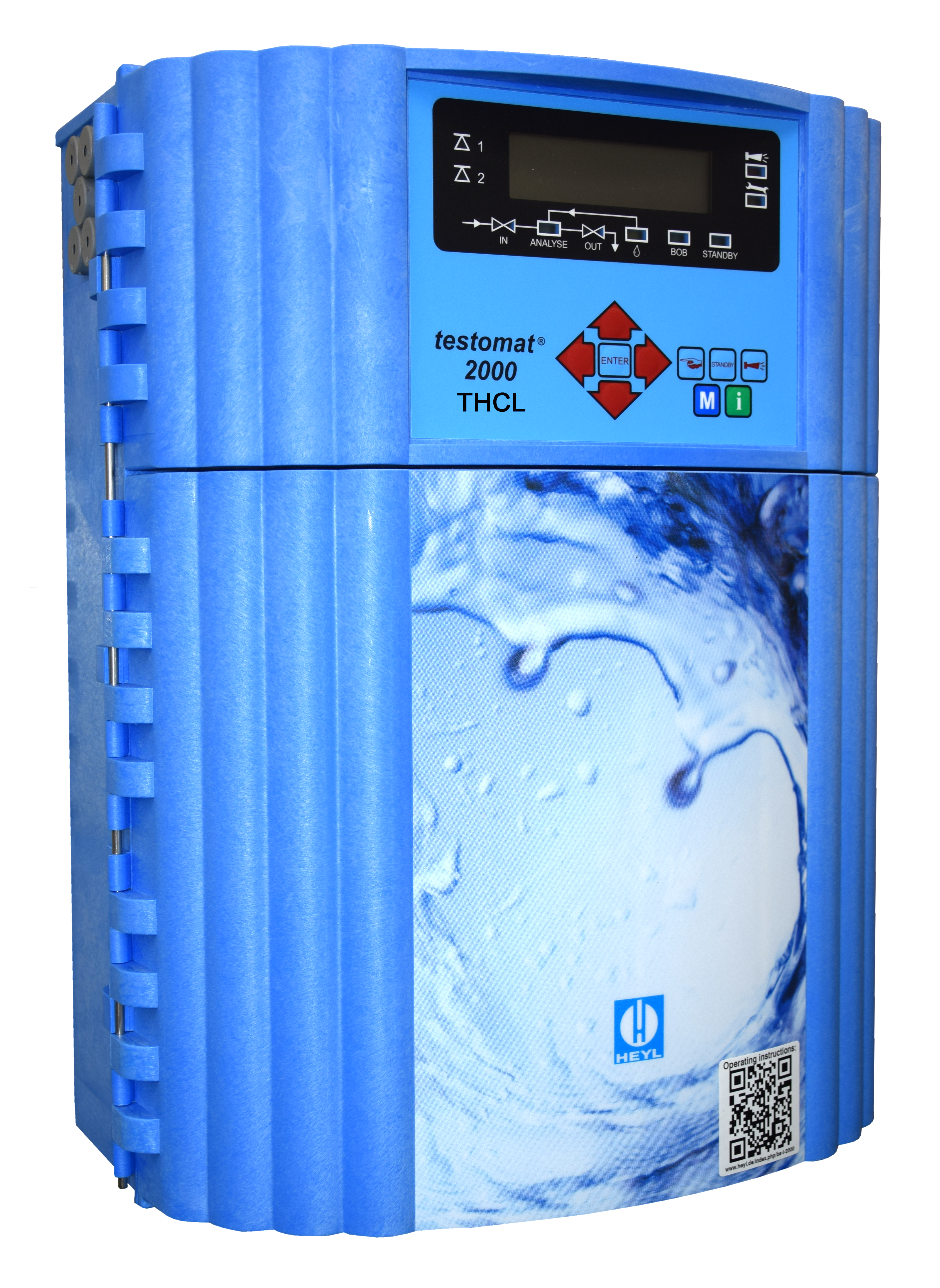

Testomat 2000 THCL®
€11,180.30*
Please log in to receive your conditions.
Available in 70 days, delivery time 1-2 days
Register warranty here
A warranty extension is possible after taking out an indicator subscription.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Leasing Example
231,32 €
non-binding
Monthly Rate (60 Rates)
Prices excl. VAT
Further rate options by choosing the payment method Leasing
Alternatives to this product
The Testomat® LAB TH determines the water hardness (residual total hardness) fully automatically by use of titration and has been developed for monitoring the water quality of water treatment plants, drinking water plants, industrial boilers and for monitoring process water and the Testomat® LAB CL is a robust, wet chemical online measuring converter to measure the concentration of total chlorine or free chlorine in the measuring range 0 - 5 mg/l. The instrument is suitable for controlling the water quality of water treatment plants, drinking water plants, process water monitoring and for monitoring the chlorine concentration in the cooling tower process. Instrument operation is based on the DPD method according to EN ISO 7393-2. The analysis is carried out through the addition of two reagents and the measurement result is obtained after a reaction time of approx. 60 seconds (pure measurement time without flush time).
In view of the fact that the Testomat® LAB TH and Testomat® LAB CL was developed for use in multi-parameter systems or for connection to a higher-level control system, we hereby offer you both Testomat® LAB analysis devices in combination with the NeoTecMaster®, which was specially developed by our company, as a package solution at a preferential price.
The 4-channel NeoTecMaster® multi-parameter controller included in this package enables the processing of up to four measurement signals in this version. A signal input on the NeoTecMaster® , in this case the RS232 interface and one additional RS232 interface on the included NeoTec Slave module , are used by Testomat® LAB TH and Testomat® LAB CL to display the measured value, the trend and the status messages on the 5 inch screen. In addition to the on board RS232 interface, the NeoTecMaster® also has a Modbus RTU input, which you can use freely after brief tech ...
- Zusätzlicher Indikatortyp TH2050 verfügbar
- CL-Messbereich 0 – 5 mg/l (T2000 CLT hat nur 0 – 2,5 mg/l)
- SD-Card zur Daten& Messwertaufzeichnung ist bauseitiger Standard
- Kleinste und preiswerteste Bauform der IST-Wert-Analysengeräte zur Einbindung in Multiparameter-Messsysteme
- Grenzwertrelais
- Überwachung von 2 Messtellen
- Keine Zertifizierung für 72h BOB (WHÜ)
- IST-Wert Bestimmung
- Grenzwertrelais
(nur umsetzbar mittels NeoTecMaster®) - Analyse für Gesamtchlor
- Displayanzeige für Messwerte
- Schutzhaube für IP 65
- 4-20mA Messwertübertragung
- Externe Analysenauslösung (START/STOP-Relais)
Product information "Testomat 2000 THCL®"
- Two independently programmable limit value contacts for monitoring and con trolling tasks
- Menu-driven operation and programming via plain text display
- High-precision titration using a piston dosing pump
- Analysis initiation:
- Automatic interval operation (Interval pause adjustable from 0–99 min)
- External control
- Dynamic (fatigue-dependent interval operation)
- Quantity dependent via contact water meter
- Two independent limits with hysteresis
- (1, 2 oder 3 bad analyzes) and adjustable switching functions
- Monitoring of two measuring points
- (Switching by external solenoid valves)
- Internal error documentation
- programmable service address
- Indicator quantities: 100 and 500 ml bottles
- Programmable maintenance interval for maintenance request
Weight
| Weight | 9,5 kg |
|---|
Other attributes
| Country of origin | DE |
|---|---|
| Customs tariff number | 90278990 |
| Power consumption: | max. 30 VA |
| Protection class: | I |
| Protection: | IP 65 |
| Ambient temperature: | 10–45 °C |
| Water temperature: | 10–40 °C |
| Dimensions (W x H x D): | 380 x 480 x 280 mm |
| Operating pressure: | 0,3–8 bar |
| Weight: | approx. 10,5 kg |
| Menu Language: | German, English, French |
| Measuring range: | Total chlorine: 0.00 – 0.99 ppm (resolution: 0.01 ppm) and 1.0 – 2.5 ppm (resolution: 0.1 ppm) | Water hardness: 4.47 – 44.7 ppm (resolution: 0.05 ppm)
|
We recommend our indicators and reagents, as well as the following accessories
