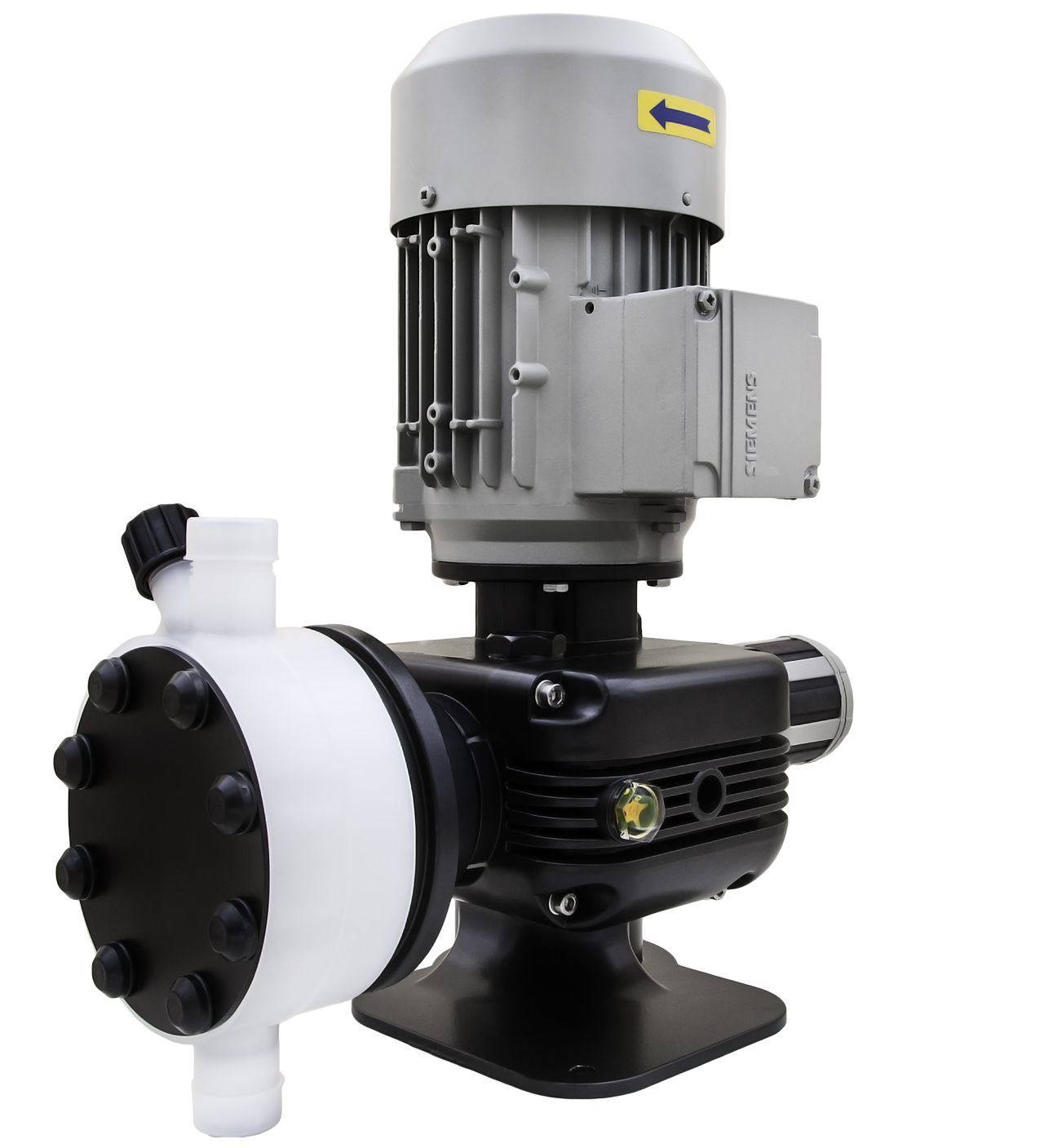

emec PRIUS D 50 Hz electric motor-driven dosing pump
€2,229.00*
Please log in to receive your conditions.
Available in 42 days, delivery time 1-2 days
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "emec PRIUS D 50 Hz electric motor-driven dosing pump"
The dosing pumps with motor in the PRIUS series were developed by EMEC to meet the highest requirements. The PRIUS D 50 Hz models ensure constant dosing and are equipped with a PTFE diaphragm. They also offer a choice of different power supply options including 380 VAC (three-phase), 220 VAC (single-phase) and 115 VAC (single-phase). In addition, the dosing pumps are available in two different pump head types: PVDF (polyvinylidene fluoride) and PP (polypropylene).
Outputs:
- 1000 l/h
- 100 bar
Power supply:
- 380 VAC
- 220 VAC
- 115 VAC
Vent pipe:
- Manual
- Automatic
Features
- Horizontal mounting
- Aluminium housing
- Spring return mechanism
- Double ball valves (if available)
- Mechanical stroke adjustment
- Infinitely variable flow control from 0 to 100% with MANUAL adjustment on the rotary knob
- Hydraulic parts available in various sizes and materials
- Tropicalised motor
Installation:
- Installation kit A included
- Installation kit B and C sold separately
- The pump with AISI316L pump body does not include installation accessories
Dimensions
| Height | 40 cm |
|---|---|
| Length | 50 cm |
| Width | 50 cm |
Weight
| Weight | 16 kg |
|---|
Other attributes
| Country of origin | IT |
|---|---|
| Customs tariff number | 84135040 |
|
Prius D 50 Hz |
||
|
Gear housing made of cast aluminium, epoxy-coated, |
||
|
Dosing diaphragm material |
PTFE (Polytetrafluoroethylen) |
|
|
Operating temperature range |
0÷40°C (32÷104°F) |
|
|
Dosing medium temperature |
||
|
Dosing head PVDF |
0÷65°C (32÷149°F) |
|
|
Dosing head SS (Stainless steel) |
0÷90°C (32÷194°F) |
|
|
Dosing head PVC |
0÷40°C (32÷104°F) |
|
|
Operating noise |
78 dbA(± 5 dB) |
|
|
Temperature during transport and storage |
-10÷50°C (14÷122°F) |
|
|
Max. permissible suction height |
3m |
|
|
Transmission oil filling quantity |
0,3 ltr. |
|
|
Electromotoren |
||
|
Voltage |
230/400 VAC, 3 Ph |
230 VAC, 1Ph |
|
Rated power |
0,37 kW |
0,37 kW |
|
Speed |
1,370 U/min |
1390 U/min |
|
Rated current |
1,89 / 1,09 A |
2,8 A |
|
Protection |
IP 55 |
|
|
Class |
F – IEC 38/1 |
|
|
Motor Flange |
71 814 |
|
