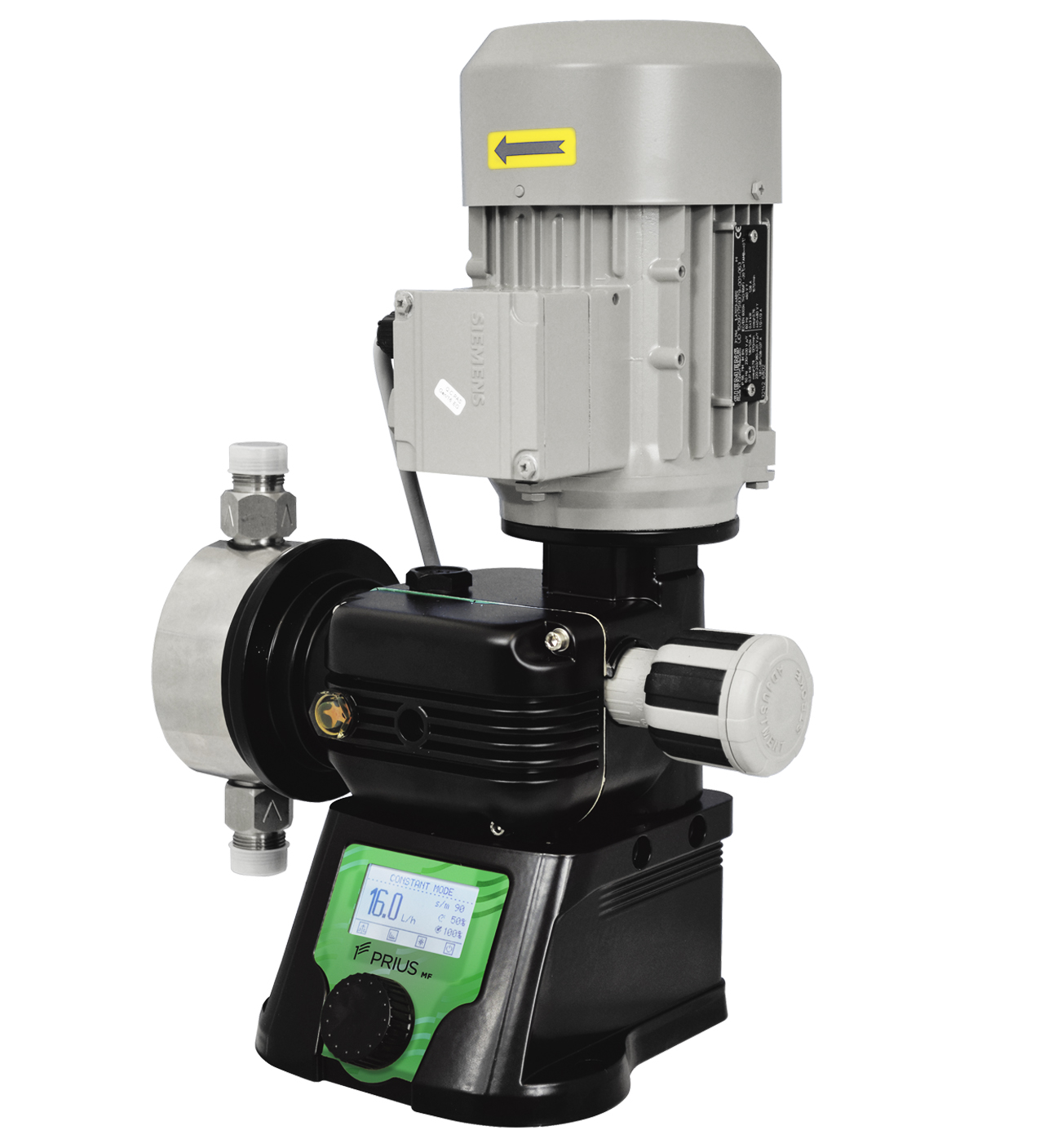

Product information "emec PRIUS D MF multifunctional motor-driven dosing pumps with diaphragm"
The dosing pumps with motor in the PRIUS series were developed by EMEC to meet the highest requirements. The PRIUS D 50 Hz models ensure constant dosing and are equipped with a PTFE diaphragm. They also offer a choice of different power supply options including 380 VAC (three-phase), 220 VAC (single-phase) and 115 VAC (single-phase). In addition, the dosing pumps are available in two different pump head types: PVDF (polyvinylidene fluoride) and PP (polypropylene).
Outputs:
- 1000 l/h
- 100 bar
Power supply:
- 380 VAC
- 220 VAC
- 115 VAC
Vent pipe:
- Manual
- Automatic
Features
- Horizontal mounting
- Aluminium housing
- Spring return mechanism
- Double ball valves (if available)
- Mechanical stroke adjustment
- Infinitely variable flow control from 0 to 100% with MANUAL adjustment on the rotary knob
- Hydraulic parts available in various sizes and materials
- Tropicalised motor
Installation:
- Installation kit A included
- Installation kit B and C sold separately
- The pump with AISI316L pump body does not include installation accessories
Dimensions
Height | 40 cm |
---|---|
Length | 50 cm |
Width | 50 cm |
Weight
Weight | 16 kg |
---|
Other attributes
Country of origin | IT |
---|---|
Customs tariff number | 84135040 |
Downloads:
Prius D MF |
|
Electric |
|
Power supply |
220-240 VAC – 50 Hz |
Power |
0,18/0,37/0,55 KW (depending on the performance of the pump) |
Fuse |
6,3 A |
Alarm output, potential-free |
230 VAC – 1A max. Switching capacity |
Installation class |
II |
Noise level |
78 dbA (+5dB) |
Class |
IP 55 (Option IP65) |
Materials |
|
Membrane |
PTFE |
Case |
Aluminium, epoxy-coated |
Dosierkopf |
PVDF, PP, PVC or Edelstahl (AISI 316L) |
Mechanical |
|
Mechanism with return spring |
|
Ventilation |
Manual for PVDF and PP dosing heads |
Check valve with two balls |
|
Flow Control |
|
Ambient temperature |
-10 – 40 °C |
Dosing medium temperature with PVDF pump head |
-10 – 40°C |
Dosing medium temperature with SS pump head |
-10 – 90 °C |
Dosing medium temperature with PP pump head |
-10 – 40°C |
Maximum suction height |
3 m |
Quantity of transmission oil |
0,3 l |
