emec PRIUS P MF multifunctional piston pumps
€2,400.00*
Please log in to receive your conditions.
Available in 28 days, delivery time 1-2 days
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.

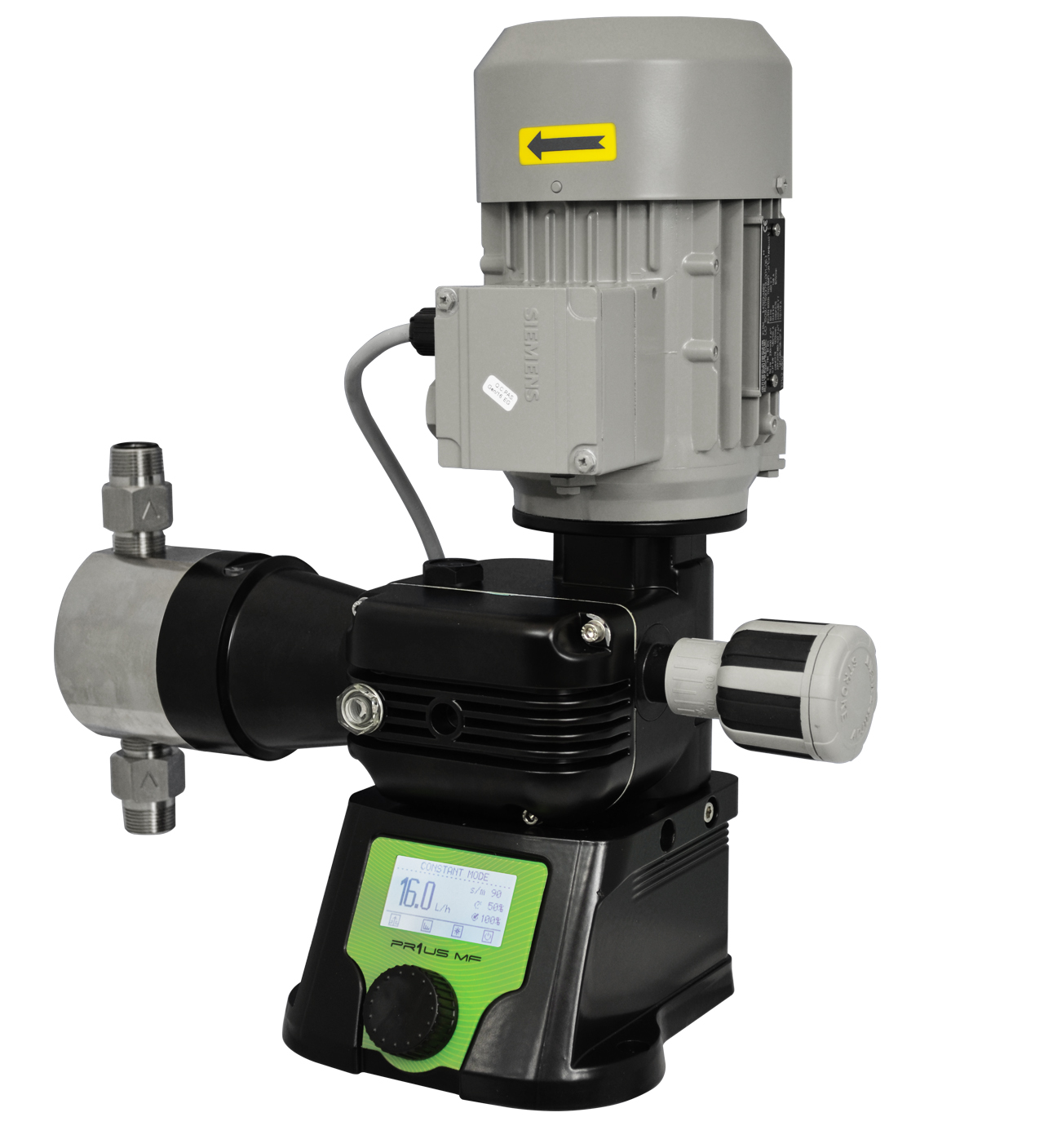

Product information "emec PRIUS P MF multifunctional piston pumps"
The PRIUS piston metering pumps feature a spring return and combine efficiency and chemical resistance with a wide range of flow rates. They also offer a choice of power supply options including 240 VAC (single-phase) and 115 VAC (single-phase). The pump head is made of PP (polypropylene).
Features
- Multifunction pump with single-phase power supply
- Operating mode: constant, ppm, %, mlq, pause-work, pulse, weekly, mA, volt and batch
- Level control Alarms Standby
- Double position of the electronic unit (standard or rotated position)
- Aluminium housing
- Mechanical stroke adjustment
- Hydraulic parts available in different sizes and materials
- Valves with double ball
- Tropicalised motors
- Insulation class F
- Energy efficiency IE 1
Dimensions
| Height | 40 cm |
|---|---|
| Length | 50 cm |
| Width | 50 cm |
Weight
| Weight | 16 kg |
|---|
Other attributes
| Country of origin | IT |
|---|---|
| Customs tariff number | 84135040 |
Downloads:
|
Prius P MF |
||
|
Electric |
||
|
Power supply |
200-260 V- 50/60 Hz |
95-130 V – 50/60 Hz |
|
Power max. |
230 VAC 2,5A RMS; 575VA |
115 VAC 5A RMS; 575VA |
|
Fuse |
6.3 A (slow blow) |
8A (slow blow) |
|
Alarm output |
24 VAC – 1A |
24 VAC – 1A |
|
Installation class |
II |
|
|
Noise level |
78 dBA (±5 dB) |
|
|
Class |
IP 55 |
|
|
Material |
||
|
Case |
Aluminium |
|
|
Pump body |
PP Stainless steel (AISI 316L) |
|
|
Piston |
Ceramics Stainless steel (AISI 316L) |
|
|
Mechanical |
||
|
Spring return mechanism |
||
|
Double Ball Valves |
||
|
Electronic adjustment of the flow rate |
||
|
Ambient temperature |
-10 – 40°C (14 – 104°F) |
|
|
Dosing medium temperature with stainless steel pump body (SS) |
-10 – 90°C (14 – 194°F) |
|
|
Dosing medium temperature with PP pump body |
-10 – 40°C (14-104°F) |
|
|
Max. suction height |
3 m |
|
|
Quantity of transmission oil |
0,3 L |
|
|
Dosing accuracy |
± 5% at nominal pressure |
|
